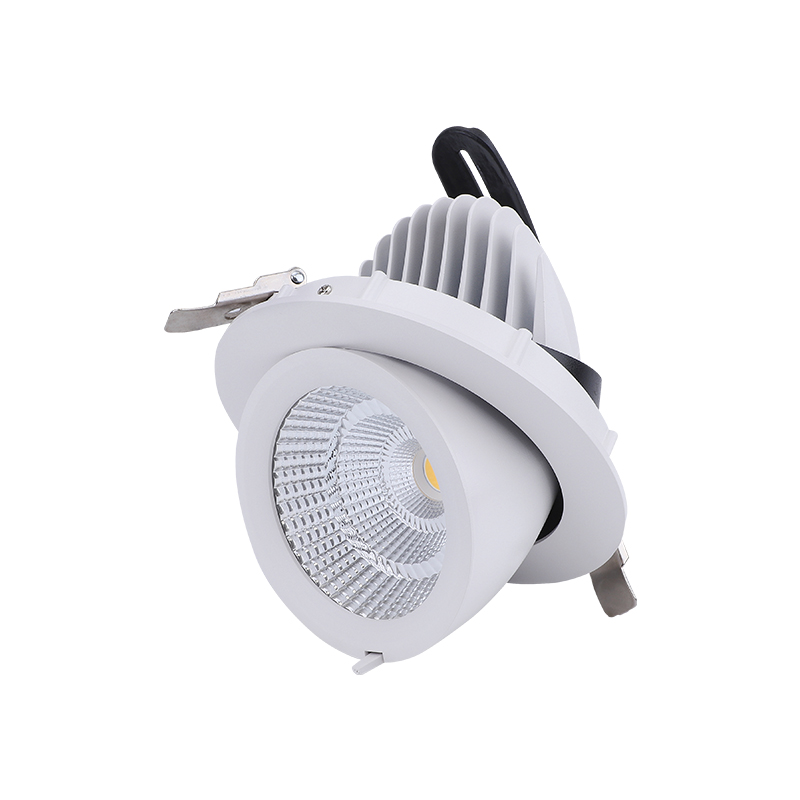

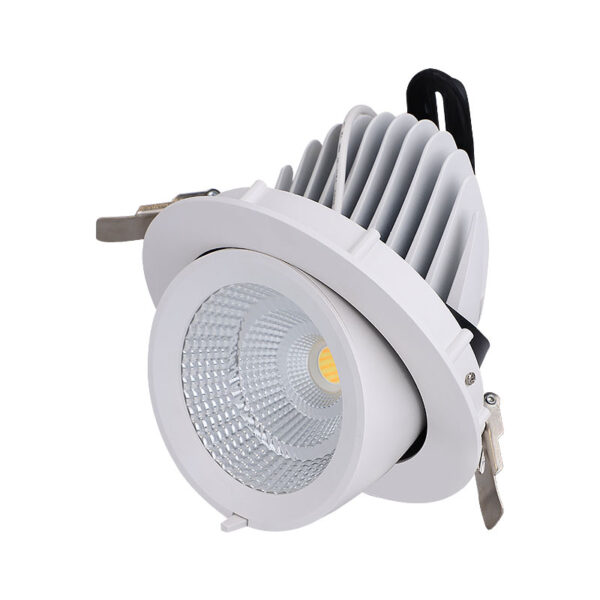

Product Feature
- Die-casting Aluminum Heatsink, Transparent PC Cover
- Top Quality COB LED Compliant with LM-80, Low Lumen Decay
- Reflective Cup for Excellent Light Distribution
- Top Brand Constant Current LED Driver, Isolating Solution, Safe and Reliable
- 360 Degrees Gimbal, Flexbile Directional Light
- Triac/ 0-10V/DALI/ Zigbee
Product Parameter
|
P/N |
Dimensions(mm) | Power | Lumen | Beam Angle | CTN Size (MM) | G.W./CTN (PCS) | QTY/CTN
(KG) |
||
|
Dia |
H |
Cutout |
|||||||
|
HS-DL-E-95-XD |
φ95 | 70 | 75 | 8W | 800 | 15°/24°/38°/60° | 500x210x450 | 50 | 23 |
|
HS-DL-E-114-XD |
φ114 | 95 | 100 | 12W | 1200 | 15°/24°/38°/60° | 620x290x460 | 50 | 26 |
|
HS-DL-E-138-XD |
φ138 | 120 | 128 | 20W | 2000 | 15°/24°/38°/60° | 490x320x480 | 18 | 16 |
| HS-DL-E-165-XD | φ165 | 145 | 150 | 24W | 2400 | 15°/24°/38°/60° | 560x380x340 | 12 |
15.6 |
| HS-DL-E-190-XD | φ190 | 165 | 175 | 36W | 3600 | 15°/24°/38°/60° | 460x450x390 | 8 |
15 |
Product Specification
| Model NO. | HS-DL-E-95-XD | HS-DL-E-114-XD | HS-DL-E-138-XD | HS-DL-E-165-XD | HS-DL-E-190-XD |
|
Dimensions |
φ95*70MM | φ114*95MM | φ138*120MM | φ165*145MM | φ190*165MM |
|
Cutout |
75MM | 100MM | 128MM | 150MM | 175MM |
|
Power |
8W | 12W | 20W | 24W | 36W |
| Luminous (Im) | 800LM | 1200LM | 2000LM | 2400LM |
3600LM |
| Color Temperature |
3000K 4000K 5000K 6000K |
||||
| Lumen Efficiency |
100LM/W |
||||
| Beam Angle |
15°/ 24°/ 38°/ 60° |
||||
|
CRI |
80-85Ra | ||||
|
Power Factor |
>0.9 | ||||
|
Input Voltage |
AC200-240V, 50/60Hz | ||||
|
Work Temperature |
-20-40℃ | ||||
| Main Material |
Die-casting Aluminum |
||||
| Frame Color |
White |
||||
| Warranty |
5 Years |
||||
| Certification |
CE, RoHS |
||||
| Remarks: HS-DL-E-95-TD HS-DL-E-114-TD HS-DL-E-138-TD HS-DL-E-165-TD HS-DL-E-190-TD HS-DL-E-95-1D HS-DL-E-114-1D HS-DL-E-138-1D HS-DL-E-165-1D HS-DL-E-190-1D HS-DL-E-95-DD HS-DL-E-114-DD HS-DL-E-138-DD HS-DL-E-165-DD HS-DL-E-190-DD |
ND: NonDimmable TD: Triac Dimmable 1D: 0-10V Dimmable DD: DALI Dimmable |
||||

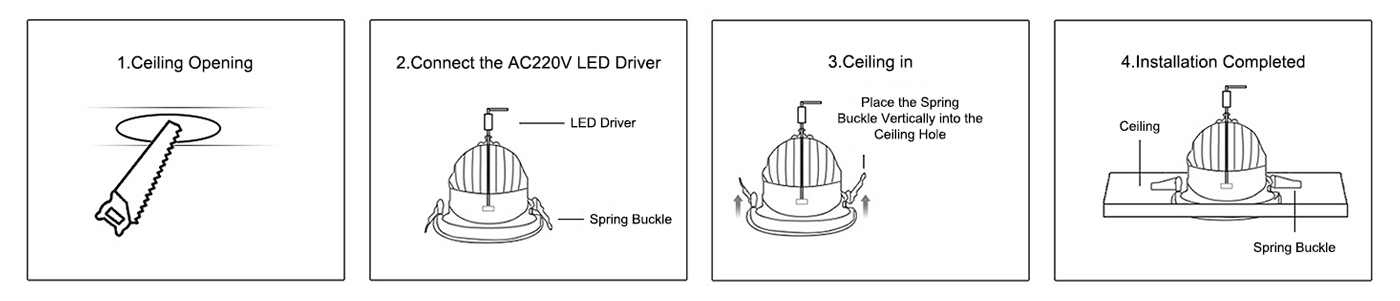

Installation Instruction
