Product Feature

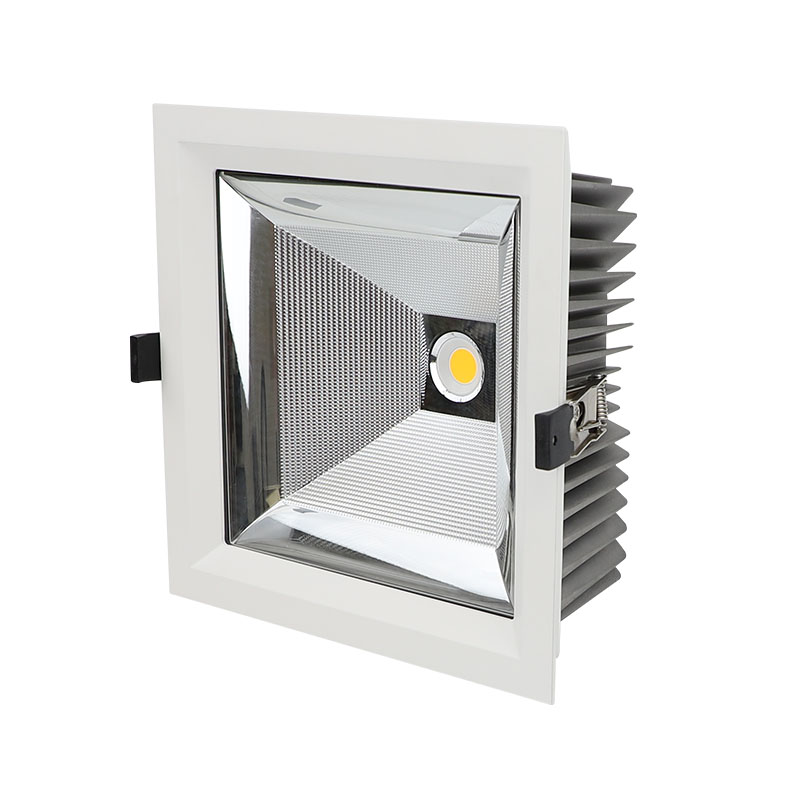

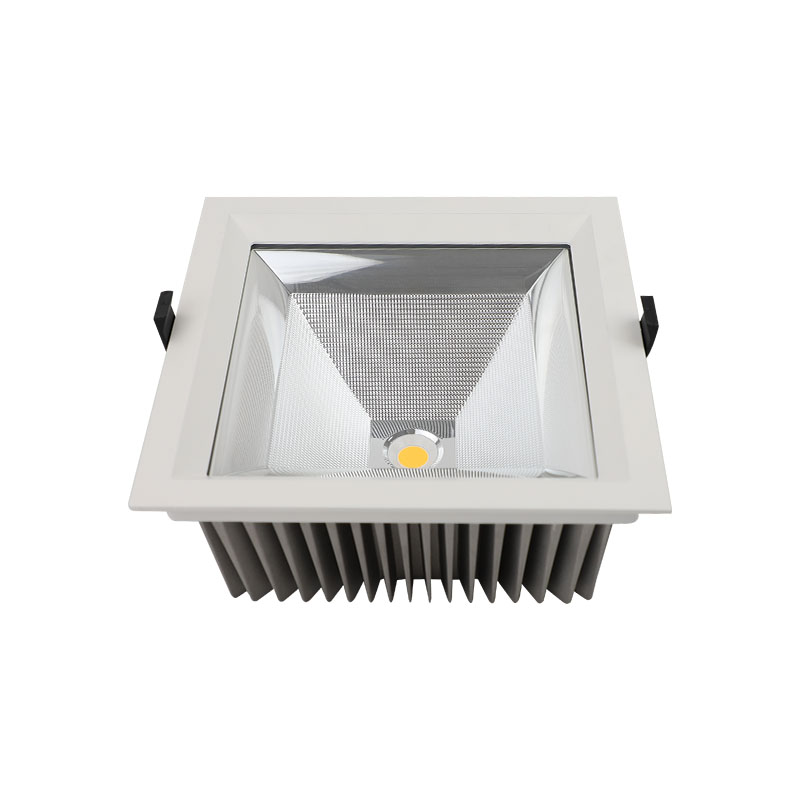

- Thickened Die-casting Aluminum Heatsink, Tempered Glass

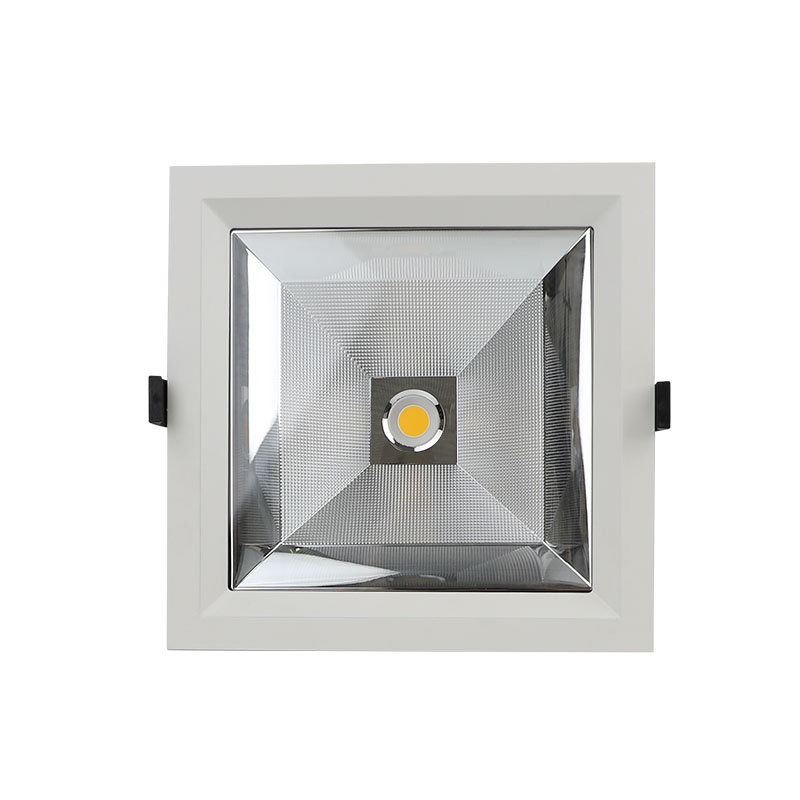

- Reflective Cup for Excellent Light Distribution
- Top Quality COB LED Compliant with LM-80, Low Lumen Decay

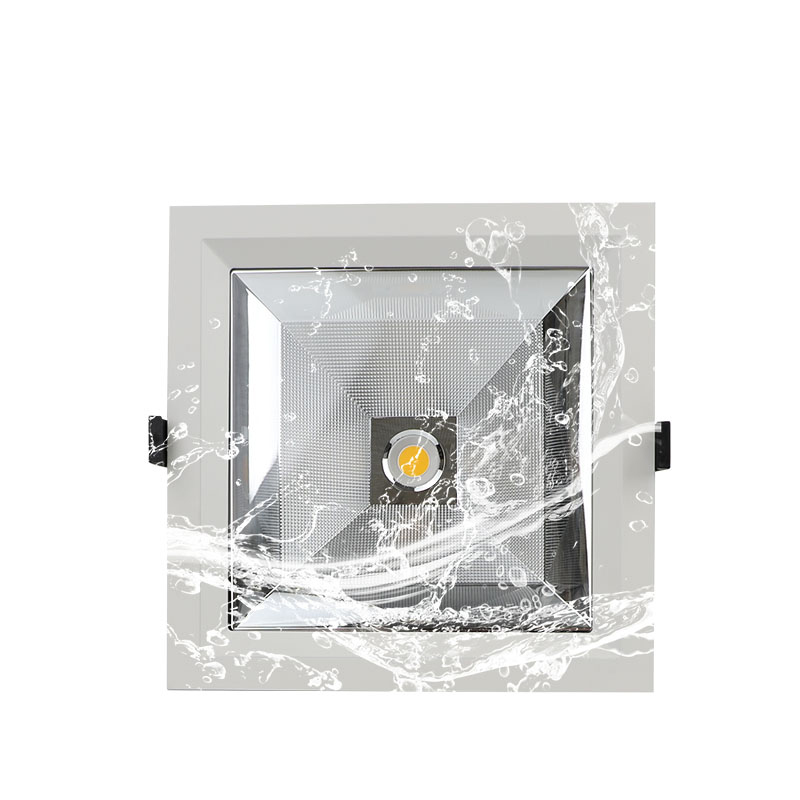

- Special Structure Design for Waterproof
- Top Brand Constant Current LED Driver, Isolating Solution, Safe and Reliable
- Triac/ 0-10V/ DALI/ Zigbee
- 5 Years Warranty
Product Specification
|
Model NO. |
HS-DL-J-110-XD(S) | HS-DL-J-130-XD(S) | HS-DL-J-165-XD(S) | HS-DL-J-225-XD(S) |
|
Dimensions |
110*60*95 | 130*70*115 | 165*80*150 | 225*95*205 |
|
Lumen Efficiency |
100LM/W | |||
|
CCT |
3000K 4000K 5000K 6000K | |||
|
Input Voltage |
AC200-240V, 50/60Hz | |||
|
PF |
>0.9 |
|||
| CRI |
>80 |
|||
| IP Rate |
IP65 |
|||
| Beam Angle |
60 ° |
|||
| Main Metarial |
Dia-casting Aluminum |
|||
| Working Temperature |
-20—50°C |
|||
Product Parameters
|
P/N |
Dimensions(mm) | Power | Lumen | Beam Angle | CTN Size (MM) | G.W./CTN (PCS) | QTY/CT(KG) | ||
|
W |
H |
Cutout |
|||||||
|
HS-DL-J-110-XD(S) |
110 | 60 | 95 | 10W | 1000 | 60 ° | 460x460x235 | 48 | 17 |
|
HS-DL-J-130-XD(S) |
130 | 70 | 115 | 20W | 2000 | 60 ° | 470x470x265 | 27 |
18 |
| HS-DL-J-165-XD(S) | 165 | 80 | 150 | 30W | 3000 | 60 ° | 530x530x265 | 27 |
22 |
| HS-DL-J-225-XD(S) | 225 | 90 | 205 | 40W | 4000 | 60 ° | 490x490x340 | 12 |
16 |
Istallation
