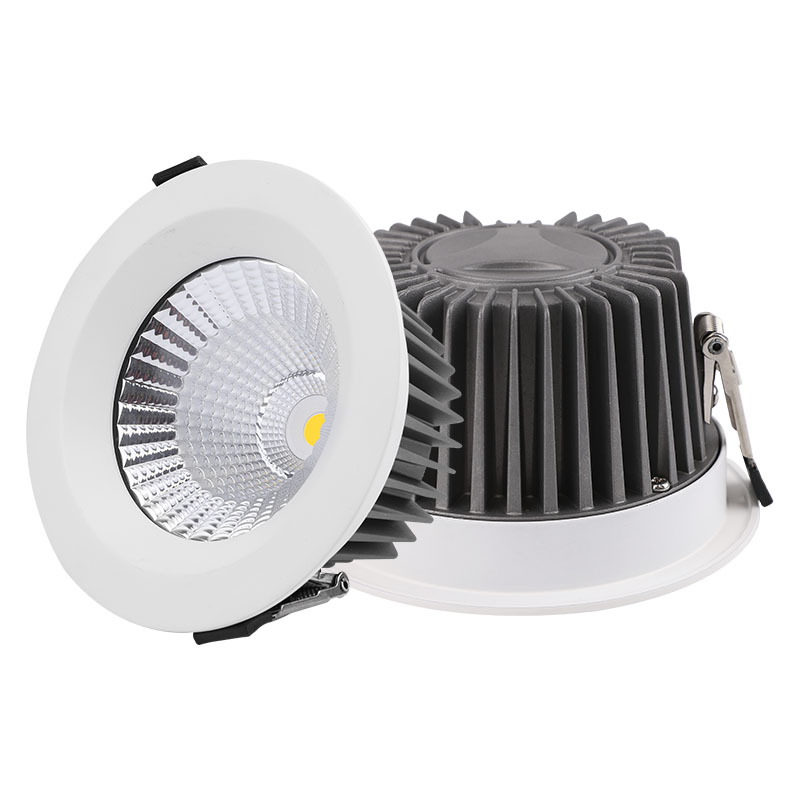

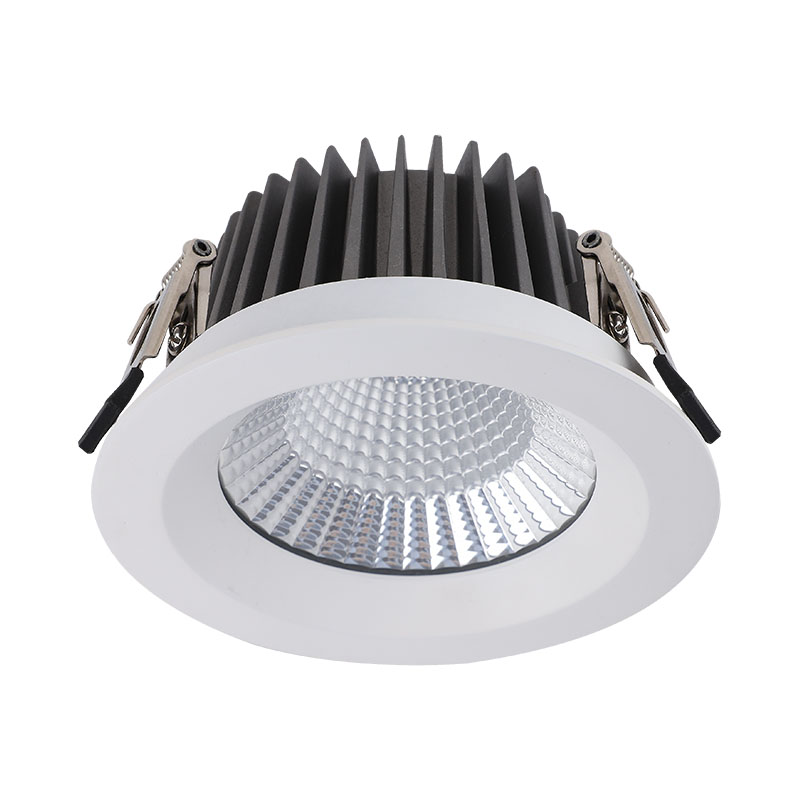

Product Features
- Thickened Die-casting Aluminum Heatsink, Tempered Glass

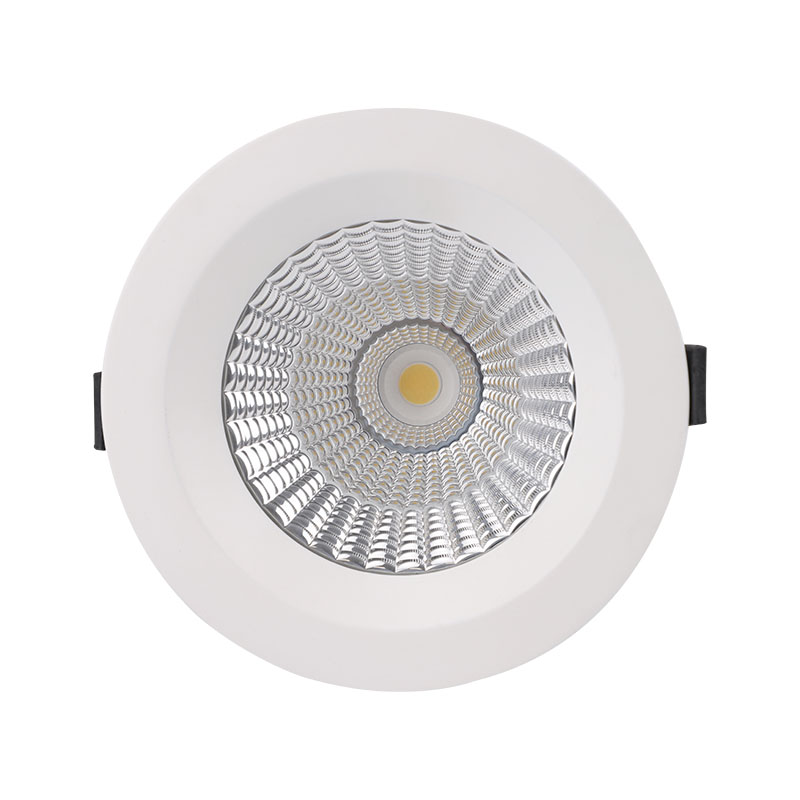

- Reflective Cup for Excellent Light Distribution
- Top Quality COB LED Compliant with LM-80, Low Lumen Decay

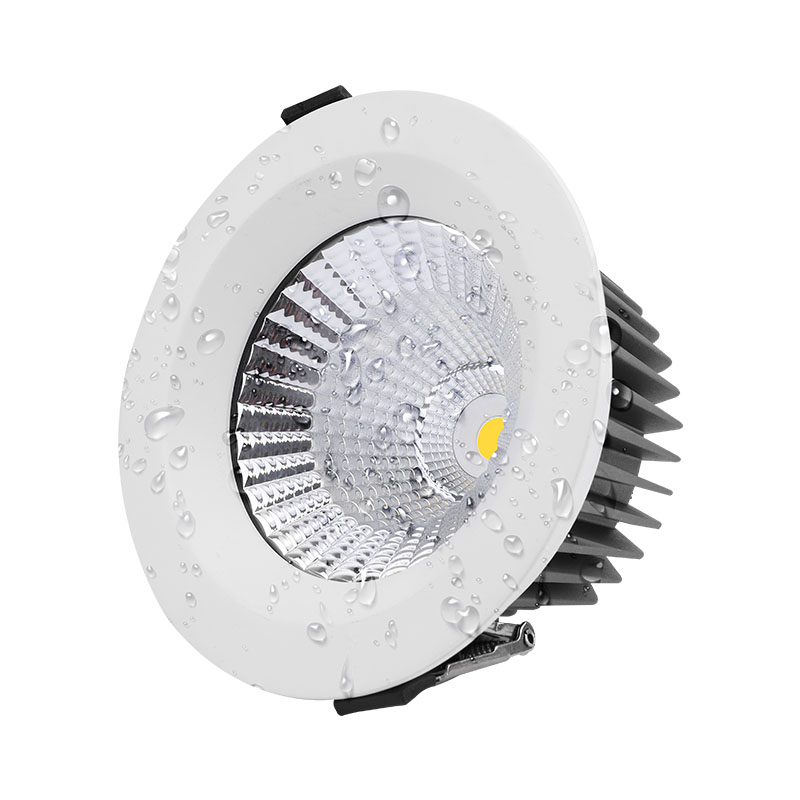

- Special Structure Design for Waterproof
- Top Brand Constant Current LED Driver, Isolating Solution, Safe and Reliable
- Non Dimmable/ Triac/ 0-10V/ DALI
Product Specification
|
Model NO. |
HS-DL-D-110-XD(R) | HS-DL-D-130-XD(R) | HS-DL-D-165-XD(R) | HS-DL-D-225-XD(R) |
|
Dimensions |
φ110*60MM | φ130*70MM | φ165*80MM | φ225*90MM |
|
Cutout |
95MM | 115MM | 150MM | 205MM |
|
Power |
10W | 20W | 30W | 40W |
|
Luminous (LM) |
1000LM | 2000LM | 3000LM | 4000LM |
|
Color Temperature |
3000K 4000K 5000K 6000K |
|||
| Lumen Efficiency |
100LM/W |
|||
| Beam Angle |
60° |
|||
| CRI |
80-85Ra |
|||
| Power Factor |
>0.9 |
|||
|
Input Voltage |
AC200-240V, 50/60Hz | |||
|
Work Temperature |
-20-40℃ | |||
|
IP Rate |
IP65 |
|||
| Main Material |
Die-casting Aluminum |
|||
| Frame Color |
White |
|||
| Warranty |
5 Years |
|||
| Certification |
CE, RoHS |
|||
Product Parameters
|
P/N |
Dimensions(mm) | Power | Lumen | Beam Angle | CTN Size (MM) | G.W./CTN (PCS) | QTY/CTN
(KG) |
||
|
Dia |
H |
Cutout |
|||||||
|
HS-DL-D-110-XD(R) |
φ110 | 60 | 95 | 10W | 1000 | 60 ° | 460x460x235 | 48 | 17 |
|
HS-DL-D-130-XD(R) |
φ130 | 70 | 115 | 20W | 2000 | 60 ° | 470x470x265 | 27 |
18 |
| HS-DL-D-165-XD(R) | φ165 | 80 | 150 | 30W | 3000 | 60 ° | 530x530x265 | 27 |
22 |
| HS-DL-D-225-XD(R) | φ225 | 90 | 205 | 40W | 4000 | 60 ° | 490x490x340 | 12 |
16 |
Installation Instruction
