Product Feature
- Fast Heat Dissipation Good Thermal Conductivity Make the Lamp Bead Life Longer
- BRAND SMD-2835, Light Source High Quality LED Wick, High-power Output, Providing High-brightness Illumination
- Die-casting Aluminum Heatsink, Integrated Die Casting Process, Large Heat Dissipation Area, Good Thermal Conductivity
- Die Cast Hook Mount, The Hook is made of refined materials, which is more sturdy and not easy to loosen.
Product Specification
|
Model |
HS-HB-UFO-B100W | HS-HB-UFO-B150W | HS-HB-UFO-B200W | |||
|
Power Factor |
>0 .95 | |||||
|
Input Voltage (V) |
100-277VAC | |||||
|
CRI |
Ra70 | Ra80 | Ra70 | Ra80 | Ra70 |
Ra80 |
|
Efficacy (Im/W)+5% |
190 | 175 | 190 | 175 | 190 | 175 |
|
Lumen output ±5% |
19000 | 17500 | 28500 | 33250 | 38000 |
35000 |
| CCT(K) |
3000K/ 4000K/ 5000K/ 5700K |
|||||
| Dimming |
Non-Dimming (Default) / 1-10V Dimming/ Dali Dimming/Zigbee Wireless Dimming |
|||||
| Intelligent Control |
Motion Sensor/ Daylight Sensor/ PIR Sensor |
|||||
|
Beam Angle |
60°/ 90°/ 110° | |||||
| Material |
Body Aluminum+ PC Lens/ Transparent PC |
|||||
| Operating Temperature |
-30°C to 50°C |
|||||
|
Humidity |
10%-90% | |||||
|
Installation |
Hook Mounted, Bracket Mounted | |||||
|
LED Type |
SMD2835 | |||||
|
Power Supply |
ZH POWER/ SOSEN | |||||
| Surge Protection |
4kV Line-line, 6kV Line-earth |
|||||
| Certification |
CE / RoHS/ ERP |
|||||
| IP Rate |
IP65 |
|||||
| Warranty |
5 Years |
|||||
Product Parameter
| Model NO. | HS-HB-UFO-B100W | HS-HB-UFO-B150W | HS-HB-UFO-B200W | |||
|
CRI |
Ra70 | Ra80 | Ra70 | Ra80 | Ra70 | Ra80 |
|
Efficiency (Im/W)+5% |
190 | 175 | 190 | 175 | 190 | 175 |
|
Lumen output ±5% |
19000 | 17500 | 28500 | 33250 | 38000 |
35000 |
| Carton Size(mm) | 330x330x185 | 330x330x185 |
390x390x195 |
|||
| QTY/CTN(PCS) | 1 | 1 |
1 |
|||
| G.W./CTN(KG) | 1.9KG | 2.9KG |
3.4KG |
|||

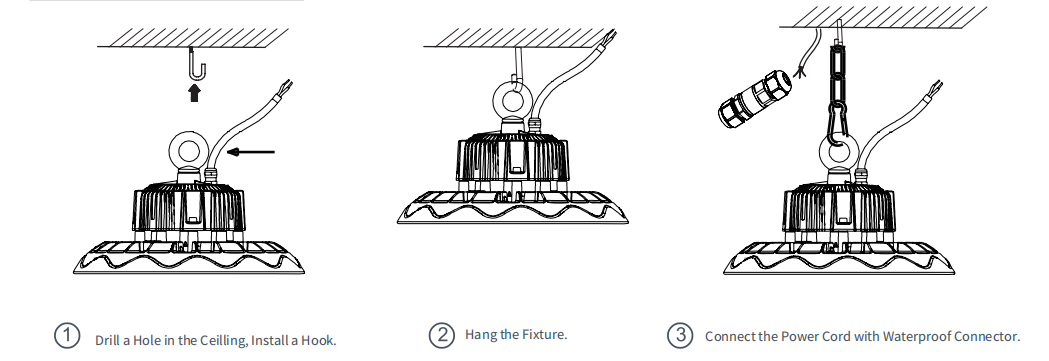

Installation Instruction
