High Quality Double-head Laser Projection Line Drawing Light

This product combines high performance and flexibility, emits accurate laser beams and supports multi-angle adjustment, which is suitable for scenarios requiring high precision positioning and guidance, ensuring optimal use in a variety of environments.

High Quality Double-head Laser Projection Line Drawing Light

This product combines high performance and flexibility, emits accurate laser beams and supports multi-angle adjustment, which is suitable for scenarios requiring high precision positioning and guidance, ensuring optimal use in a variety of environments.

Product Parameter

Model NO.	HS-LL-25-18	HS-LL-25-22	HS-LL-25-35
Power(w)	2*20W	2*30W	2*60W
Wavelength	520mm	450mm	450mm
AngIe	90/ 110	110	110
Mounting Height	4.5~5m	11m	22m
LED Type	Green Light	Blue Light	Blue Light
IP Rating	>IP65
Power Factor	0.95
THD	<5%
Dimming Type	Light Control
Working Temp	-40 ℃~+30 ℃
Input Voltage	AC120-347V, 50/60Hz
Insulation Class	CIass I / CIass 2
Safety Standards	EN ICE 60598-2-1
EMC	EN55015, EN IEC 61000-3-2
Warranty	2 years

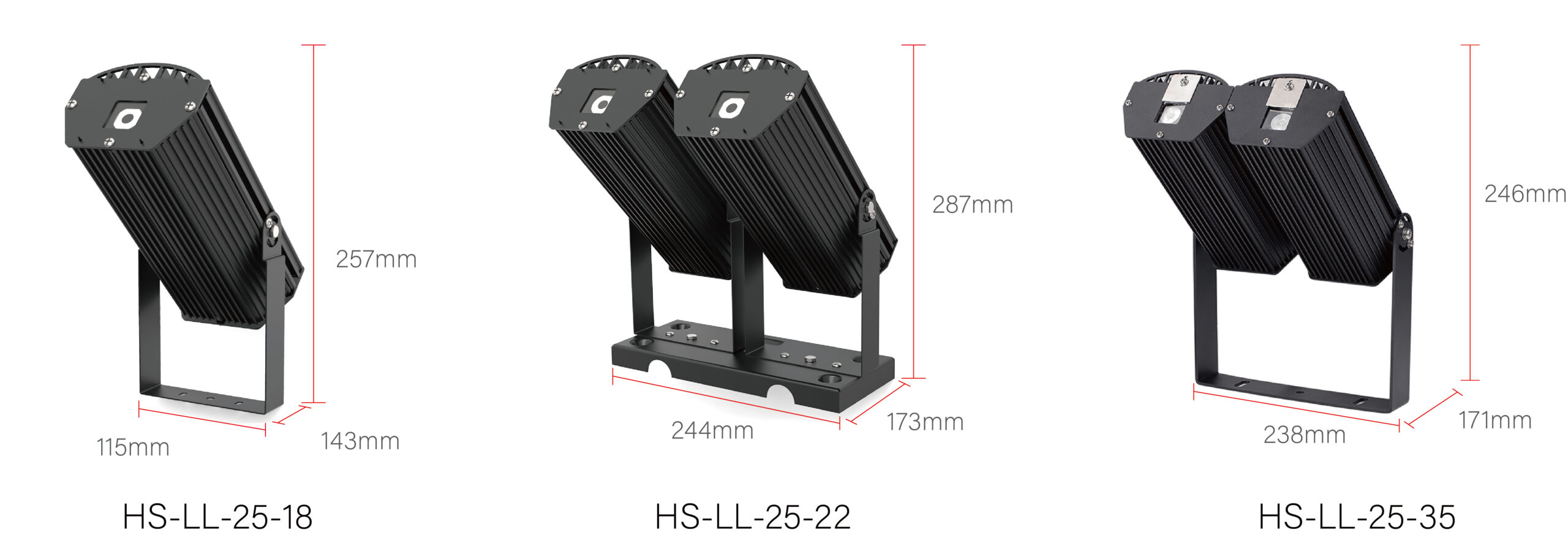

Product Size

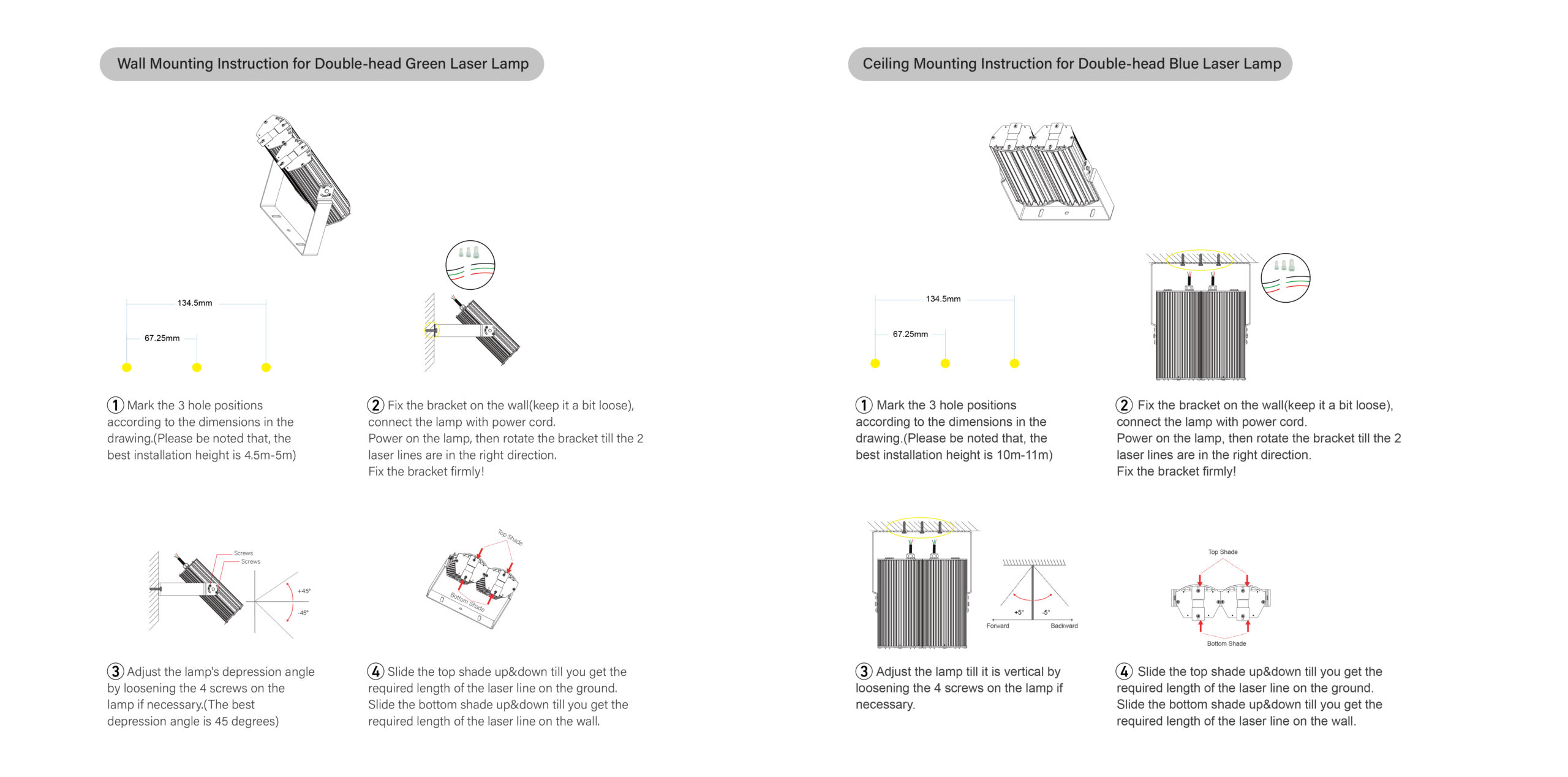

Installation Instruction
