Product Feature
- Die-casting Aluminum Frame
- PMMA Light Guide Plate, No Yellowing
- Uniform Light Output, No Darkness Area
- Top Brand Constant Current LED Driver
- Ultra High Lumen Efficiency up to 100lm/W
- Triac/ 0-10V/DALI Available
- 5 YearsWarranty
Product Specification
|
Part NO. |
HS-PL-SM-R120 | HS-PL-SM-R180 | HS-PL-SM-R225 | HS-PL-SM-R300 | HS-PL-SM-R400 | HS-PL-SM-R500 | HS-PL-SM-R600 |
|
Power |
6W | 12W | 18W | 24W | 30W | 40W | 40W |
|
Lumen Efficiency |
110lm/W | ||||||
|
CCT |
3000K~6000K/ Dual Colors |
||||||
| Input Voltage |
AC200-240V, 50/60Hz |
||||||
| LED Type |
SMD2835 |
||||||
| CRI |
>80 |
||||||
|
PF |
>0.9 | ||||||
|
Beam Angle |
120° | ||||||
| Frame Color |
White |
||||||
| Working Temperature |
-20—50°C |
||||||

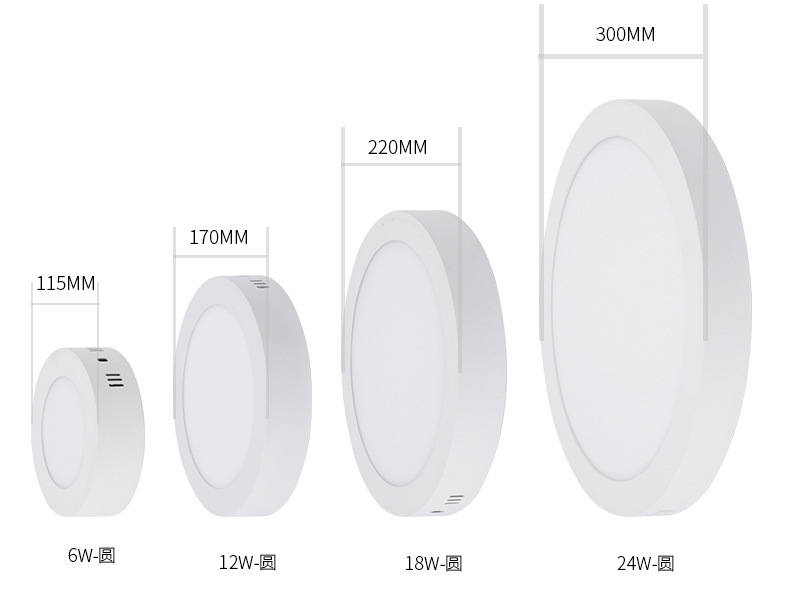

Product Parameter
| Model NO. | Dimensions(mm) | Power(w) | Lumen(Im) | Carton Size(mm) | QTY/CTN(PCS) | G.W./CTN(KG) |
|
HS-PL-SM-R120 |
φ120*40 | 6W | 450-500 | 670x245x280 | 50 | 15kg |
|
HS-PL-SM-R180 |
φ170*40 | 12W | 900-1100 | 460x420x420 | 40 | 20.5kg |
|
HS-PL-SM-R225 |
φ225*40 | 18W | 1600-1800 | 460x250x500 | 20 | 14kg |
| HS-PL-SM-R300 | φ300*40 | 24W | 2200-2400 | 460x320x620 | 20 |
24kg |
| HS-PL-SM-R400 | φ400*40 | 30W | 3000-3300 | 430x430x410 | 8 |
15.5kg |
| HS-PL-SM-R500 | φ500*40 | 40W | 4000-4400 | 530x530x320 | 6 |
17kg |
| HS-PL-SM-R600 | φ600*40 | 40W | 4000-4400 | 630x630x270 | 5 |
21kg |
