Product Feature
- AL 6063 Aluminum Frame, White as Default, Customized Colors Available
- Super High Lumen Efficiency(230lm/W) SMD 2835 Adopted, CRI>80
- Constant Currrent LED Driver, Efficiency>92%, PF>0.9, THD<15%, TUV/ SAA/ CE/ RoHS Certificated
- Top Lumen Efficiency up to 150lm/W Triac, 0-10V, DALI Dimmable, Non Dimmable, Flicker-Free Available
- Recessed Installation/ Surface Mounting/ Hanging Installation
- Customized Sizes Available on Request
- Operating Temperature: -20°C to 40°C
Product Specification
|
Part NO. |
HS-PL-6060 | HS-PL-6262 | HS-PL-30120 |
|
Dimensions |
595*595*35 | 620*620*35 | 1195*295*35 |
|
Lumen Efficiency |
150-180lm/W | ||
|
CCT |
3000K~6000K, Dual Colors | ||
|
Input Voltage |
AC200-240V, 50/60Hz | ||
|
LED Type |
SMD2835 |
||
| CRI |
>80 |
||
| PF |
>0.9 |
||
| Beam Angle |
120° |
||
| Frame Color |
White/ Customized Colors |
||
| Power |
21W |
||
Product Parameters
|
Part NO. |
HS-PL-6060 | HS-PL-6262 | HS-PL-30120 |
|
Size(MM) |
595*595*35 | 620*620*35 | 1195*295*35 |
|
Power |
21W | 21W | 21W |
|
Luminous (Im) |
3750 | 3750 | 3750 |
|
UGR<19 Luminous (Im) |
3500 | 3500 |
3500 |
| Color Temp |
2700K-6500K |
||
| Lumen Efficiency |
180LM/W |
||
| CRI |
80-85Ra |
||
| Power Factor |
>0.9 |
||
|
Input Voltage |
AC200-240V, 50/60Hz | ||
|
Work Temp |
-20 — 40℃ | ||
|
Main Material |
6063 Aluminum Frame + PMMA LENS + PS Diffuser | ||
| Frame Color |
White |
||
| Warranty |
5 Years |
||
| Certification |
CE, RoHS |
||
Installation Instruction

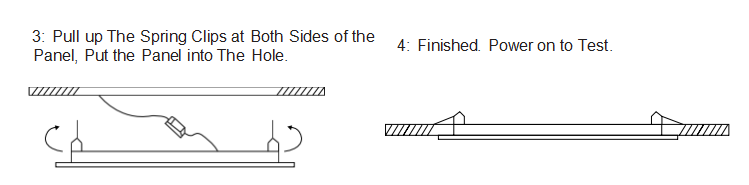

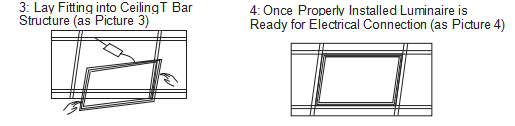

A: Recessed Installation

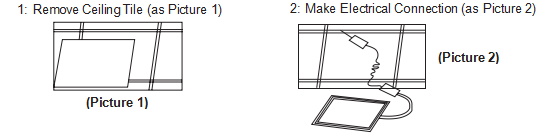

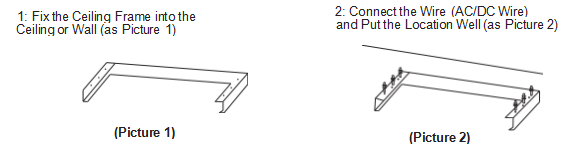

B: Ceiling Installation

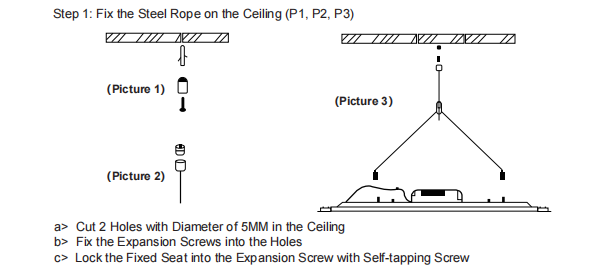

C: Hanging Installation
