Product Feature
- Iron Frame, White as Default, Customized Colors Available
- SMD 2835 Adopted, CRI>80
- Constant Currrent LED Driver, Efficiency>88%, PF>0.9, THD<15%, TUV/ SAA/ CE/ RoHS Certificated
- Top Lumen Efficiency up to 100lm/W Triac, Zigbee Dimmable
- Recessed Installation/ Surface Mounting/ Hanging Installation

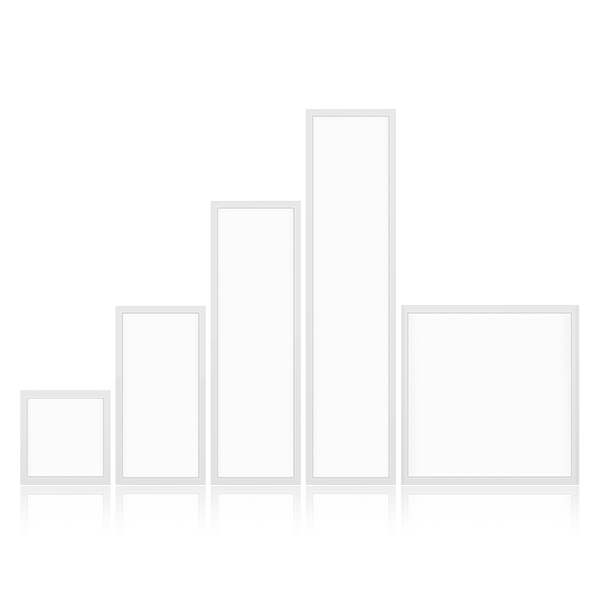

- Customized Sizes Available on Request
- Operating Temperature: -20°C to 40°C
Product Parameter
|
Part NO. |
HS-PL-17160 | HS-PL-12150 | HS-PL-23150 |
|
Size(MM) |
1550*165*35 | 1495*115*35 | 1495*230*35 |
|
Power |
40W | 40W | 40W |
|
Luminous (Im) |
4000 | 4000 | 4000 |
|
UGR<19 Luminous (Im) |
3800 | 3800 | 3800 |
|
Color Temp |
3000K-6000K | ||
| Lumen Efficiency |
100LM/W |
||
| CRI |
80Ra |
||
| P.F |
>0.9 |
||
| Input Voltage |
AC200-240V, 50/60Hz |
||
| Work Temp |
-20 — 40℃ |
||
| Main Material |
Iron Frame + PMMA LENS + PS Diffuser |
||
|
Frame Color |
White | ||
|
Warranty |
5 Years |
||
| Certification |
CE, RoHS |
||

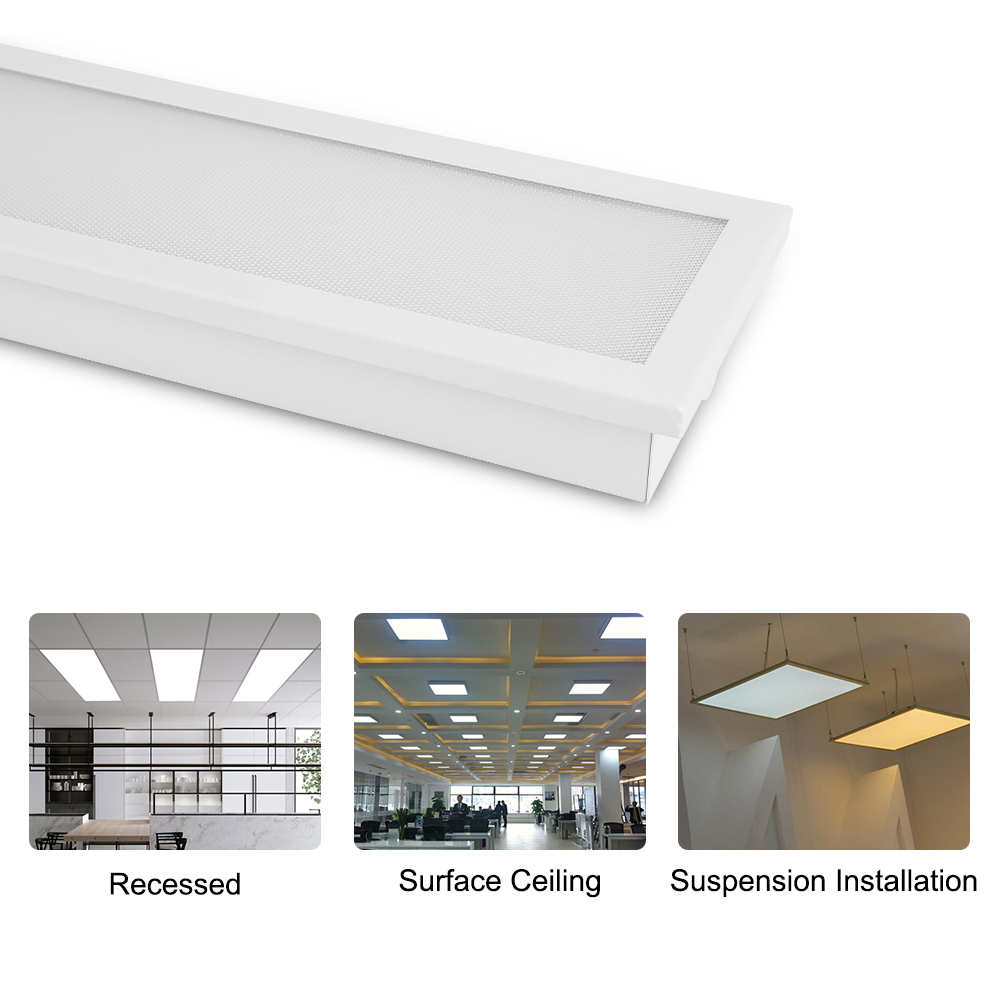

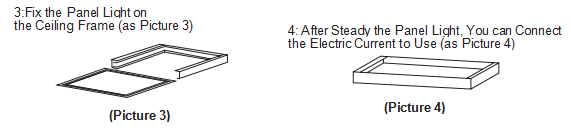

Installation Instruction
A. Recessed Installation
B.Ceiling Installation
C.Suspension Installation
