Product Feature
- Ultra Thin Panel, Elegant Outlook
- Excellent Light Distribution Uniformity
- PMMA Light Guide Plate, No Yellowing
- Flexible Intallation(Suspending, Recessed, Surface Mounting)
- Triac/ 0-10V/ DALI/ Wireless / Zigbee Available
- UGR<23 & UGR<19 Available
- 5 Years Warranty
- Customized Dimensions Supported
Product Specification
|
Part NO. |
HS-PL-3030 | HS-PL-3060 | HS-PL-6060 | HS-PL-6262 | HS-PL-30120 | HS-PL-60120 |
|
Dimensions(mm) |
295*295*9 | 295*595*9 | 595*595*9 | 620*620*9 | 1195*295*9 | 1195*595*9 |
|
Lumen Efficiency |
100-120lm/W | |||||
|
CCT |
3000K~6000K, Dual Colors, RGBCW | |||||
|
Input Voltage |
AC200-240V, 50/60Hz | |||||
|
LED Type |
SMD4014 |
|||||
| CRI |
>80 |
|||||
| PF |
>0.9 |
|||||
| Beam Angle |
120° |
|||||
| Frame Color |
White |
|||||
| UGR |
<23 <19 |
|||||
Product Parameter
|
Part NO. |
HS-PL-3030 | HS-PL-3060 | HS-PL-6060 | HS-PL-6262 | HS-PL-30120 | HS-PL-60120 |
|
Dimensions(mm) |
295*295*9 | 295*595*9 | 595*595*9 | 620*620*9 | 1195*295*9 | 1195*595*9 |
|
Power |
18W | 18W | 30W | 30W | 30W | 60W |
|
Luminous (Im) |
1900 | 2000 | 3600 | 3600 | 3600 | 6000 |
| UGR<19
Luminous (Im) |
1700 | 1800 | 3300 | 3300 | 3300 |
5400 |
| Color Temp |
3000K/4000K/5000K/6000K/CCT Changeable |
|||||
| Lumen Efficiency |
120LM/W |
|||||
| CRI |
80-85Ra |
|||||
|
Power Factor |
>0.9 | |||||
|
Input Voltage |
AC200-240V, 50/60Hz | |||||
|
Work Temp |
-20 — 40℃ | |||||
|
Main Material |
6063 Aluminum Frame + PMMA + PS Diffuser |
|||||
| Frame Color |
White |
|||||
| Warranty |
5 Years |
|||||
| Certification |
CE, RoHS |
|||||

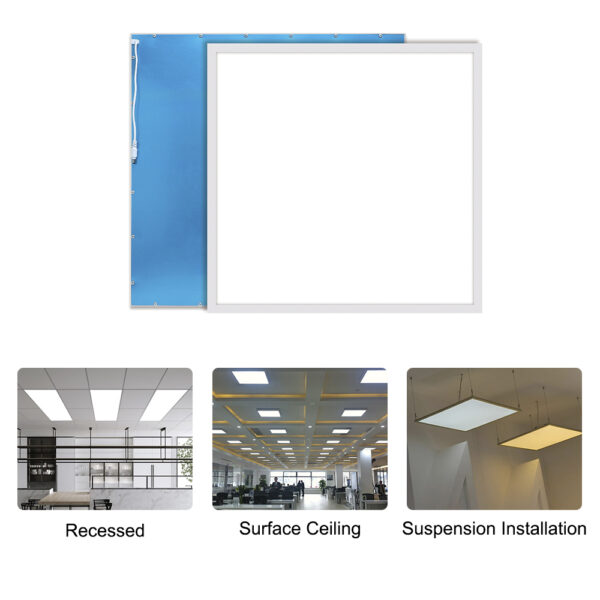

Installation Instructions
A: Recessed Installation

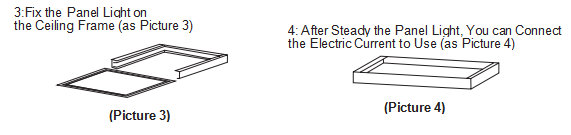

B: Ceiling Installation

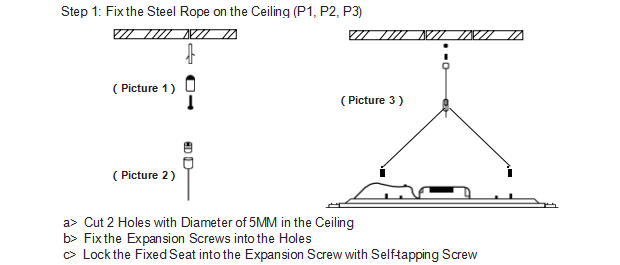

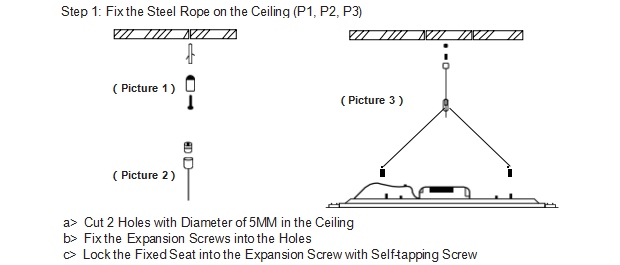

C: Suspension Installation
