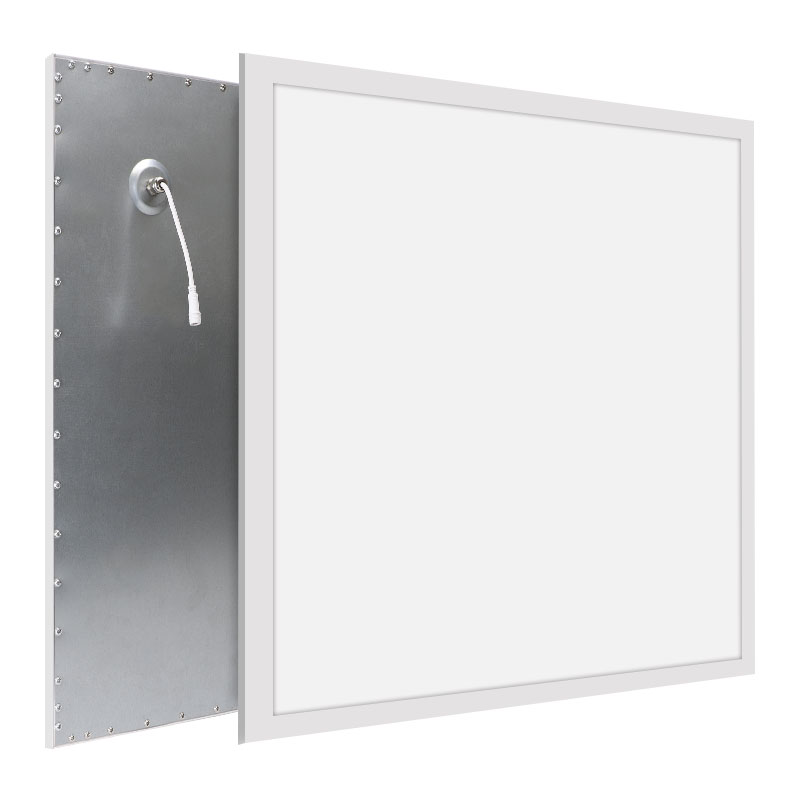

Product Feature
- Ultra Thin(11mm), Waterproof Structure Design
- Excellent Light Distribution Uniformity
- PMMA Light Guide Plate, No Yellowing
- Flexible Intallation(Suspending, Recessed, Surface Mounting)
- Triac / 0-10V / DALI Available
- UGR<23 & UGR<19 Available
- Waterproof, IP65 Rated for Wet Places
- Customized Dimensions Supported
Product Specification
|
Part NO. |
HS-PL-3030 | HS-PL-3060 | HS-PL-6060 | HS-PL-6262 | HS-PL-30120 | HS-PL-60120 |
|
Dimensions(mm) |
295*295*11 | 295*595*11 | 595*595*11 | 620*620*11 | 1195*295*11 | 1195*595*11 |
|
CCT |
3000K 4000K 5000K 6000K | |||||
|
LED Type |
SMD4014 |
|||||
| Beam Angle |
120° |
|||||
| IP Rate |
IP65 |
|||||
| UGR | <23 <19 | |||||
Product Parameter
|
Part NO. |
HS-PL-3030 | HS-PL-3060 | HS-PL-6060 | HS-PL-6262 | HS-PL-30120 | HS-PL-60120 |
|
Dimensions(mm) |
295*295*11 | 295*595*11 | 595*595*11 | 620*620*11 | 1195*295*11 | 1195*595*11 |
| Power | 18W | 18W | 30W | 30W | 30W |
60W |
| Luminous (Im) | 1900 | 2000 | 3600 | 3600 | 3600 |
6000 |
|
Color Temp |
2700K-6500K | |||||
|
Lumen Efficiency |
100-120lm/W | |||||
|
CRI |
80-85Ra | |||||
|
Power Factor |
>0.9 | |||||
|
Input Voltage |
AC200-240V, 50/60Hz | |||||
| Work Temp |
-20 — 80℃ |
|||||
| Main Material |
6063 Aluminum Frame + PMMA + PS Diffuser |
|||||
| Frame Color |
White |
|||||
| Warranty |
5 Years |
|||||
| Certification |
CE, RoHS |
|||||
Remarks: There will be a suffix “X-YY” added at the end of the part NO.
X=Type of Panel Light: A/B/C/D (A: IP42 Side-lit Panel, B: IP65 Side-lit Panel, C: Recessed Panel Light with Spring, D: Back-lit Panel
YY=Dimming Type: ND/TD/1D/DD (ND: Non Dimmable, TD: Triac Dimmable, 1D: 1-10V Dimmable, DD: DALI Dimmable
Installation Instructions
A: Recessed Installation
B: Celling Installation

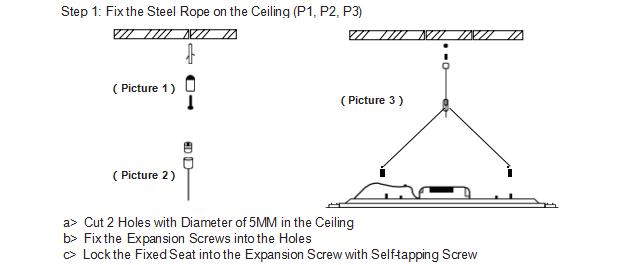

C: Suspension Installation
