Side-lit LED Flat Panel Light Recessed Square Panel Light 595x595mm

This panel light uses high quality LED chip and optic PMMA lens to ensure a uniform and gentle distribution of light, making the lighting effect more natural, improving visual comfort and reducing eye strain. The design of recessed with spring clip provides convenient and quik installation, improves stability, and can be easily removed and replaced when necessary, greatly facilitating your daily use and maintenance.

Side-lit LED Flat Panel Light Recessed Square Panel Light 595x595mm

This panel light uses high quality LED chip and optic PMMA lens to ensure a uniform and gentle distribution of light, making the lighting effect more natural, improving visual comfort and reducing eye strain. The design of recessed with spring clip provides convenient and quik installation, improves stability, and can be easily removed and replaced when necessary, greatly facilitating your daily use and maintenance.

Product Feature

  • Ultra Thin Frame with Stepped Edge for Recessed Installation with Spring Clips
  • Excellent Light Distribution Uniformity
  • PMMA Light Guide Plate, No Turning Yellow
  • Triac/ 0-10V/ DALI/ Wireless/ Zigbee Available
  • UGR<23 & UGR<19 Available
  • 5 Years Warranty
  • Customized Dimensions Supported

Product Specification

Part NO. HS-PL-3030 HS-PL-3060 HS-PL-6060 HS-PL-6262 HS-PL-30120 HS-PL-60120

Dimensions(mm)

295*295*10 295*595*10 595*595*10 620*620*10 1195*295*10 1195*595*10

Lumen Efficiency

100-120lm/W

CCT

3000K~6000K, Dual Colors, RGB

Input Voltage

AC200-240V, 50/60Hz

LED Type

SMD4014
CRI

>80

PF

>0.9

Beam Angle

120°

Frame color

White

UGR

<23  <19

Product Parameters

Part NO.

Dimensions(mm)

HS-PL-3030

295*295*10

HS-PL-3060

295*595*10

HS-PL-6060

595*595*10

HS-PL-6262

620*620*10

HS-PL-30120

1195*295*10

HS-PL-60120

1195*595*10

Cutout(mm)

281*281 281*581 581*581 606*606 1181*281 1181*581

Power

18W 18W 30W 30W 30W 60W
Luminous (Im) 1900 2000 3600 3600 3600

6000

UGR<19

Luminous (Im)

1700 1800 3300 3300 3300

5400

Color Temp

3000K/4000K/5000K/6000K/CCT Changeable

Lumen Efficiency

100-120lm/W

CRI

80-85Ra

Power Factor

>0.9

Input Voltage

AC200-240V, 50/60Hz

Work Temp

-20—50°C

Main Material

6063 Aluminum Frame + PMMA + PS Diffuser

Frame Color

White

Warranty

5 Years

Certification

CE, RoHS

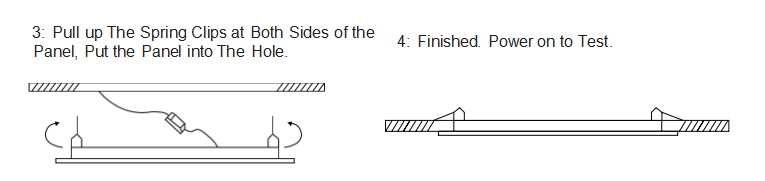

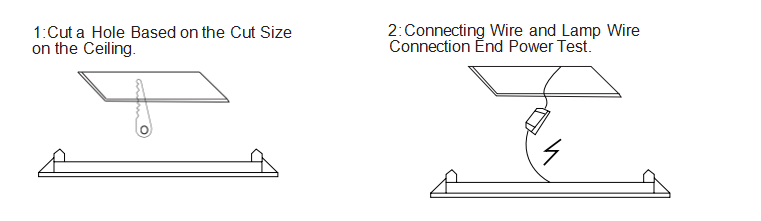

Installation Instructions
