Product Features
- AL 6063 Aluminum Frame, White as Default, Customized Colors and Sizes Available
- Super High Lumen Efficiency(230lm/W) SMD 2835 Adopted, CRI>80
- Constant Currrent LED Driver, Efficiency>92%, PF>0.9, THD<15%, TUV/ SAA/ CE/ RoHS Certificated
- Top Lumen Efficiency up to 150lm/W, Zigbee Dimmable
- Recessed Installation/ Surface Mounting/ Hanging Installation
- Operating Temperature: -20°C to 40°C
Product Specification
|
Part NO. |
HS-PL-3030 | HS-PL-3060 | HS-PL-6060 | HS-PL-6262 | HS-PL-12030 | HS-PL-12060 |
|
Dimensions |
295*295*35 | 295*595*35 | 595*595*35 | 620*620*35 | 1195*295*35 | 1195*595*35 |
|
Lumen Efficiency |
150-180lm/W | |||||
|
CCT |
3000K~6000K, Dual Colors | |||||
| Input Voltage |
AC200-240V, 50/60Hz |
|||||
| LED Type |
SMD2835 |
|||||
| Beam Angle |
120° |
|||||
| Frame Color |
White/ Customized Colors |
|||||
Product Parameter
|
Part NO. |
HS-PL-3030 | HS-PL-3060 | HS-PL-6060 | HS-PL-6262 | HS-PL-12030 | HS-PL-12060 |
|
Size(MM) |
295*295*35 | 295*595*35 | 595*595*35 | 620*620*35 | 1195*295*35 | 1195*595*35 |
|
Power |
15W | 15W | 25W | 25W | 25W |
40W |
| Luminous (Im) | 2100 | 2300 | 3750 | 3750 | 3750 |
6000 |
| UGR<19
Luminous (Im) |
2000 | 2000 | 3500 | 3500 | 3500 |
5600 |
|
Color Temp |
3000K-6500K | |||||
|
Lumen Efficiency |
150LM/W | |||||
|
CRI |
90Ra | |||||
|
Power Factor |
>0.9 | |||||
|
Input Voltage |
AC200-240V, 50/60Hz | |||||
| Work Temp |
-20 — 40℃ |
|||||
| Main Material |
6063 Aluminum Frame + PMMA LENS + PS Diffuser |
|||||
| Frame Color |
White |
|||||
| Warranty |
5 Years |
|||||
| Certification |
CE, RoHS |
|||||
Installation Instructions
A: Recessed Installation
B: Ceiling Installation

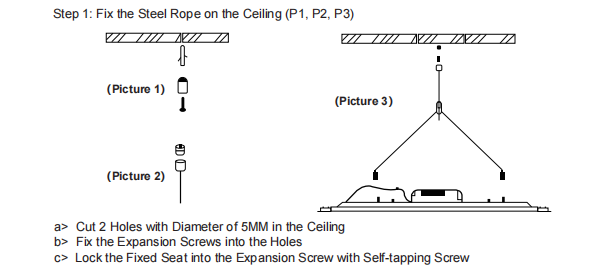

C: Hanging Installation
