Product Feature

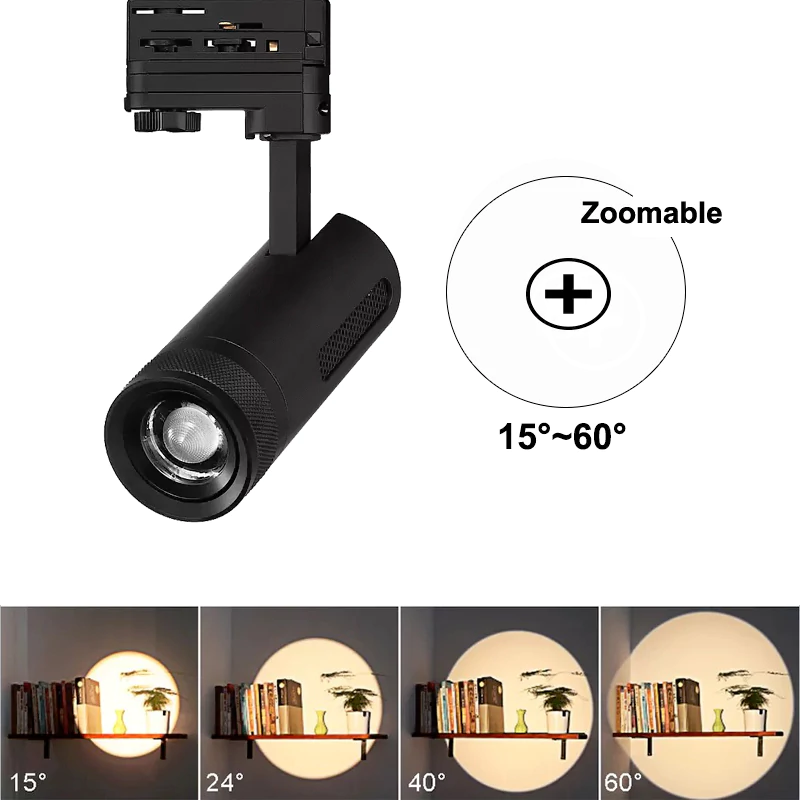

- Zoomable Design for Different Applications
- Special Structure Design with Enhanced Air Cross-ventilation, Low Working Temperature
- Adopt High Quality COB LED Compliant with LM-80, Low Lumen Decay
- Top Brand LED Driver, Isolating Solution, Reliable
- Triac/ Zigbee Options
- 5 Years Warranty
Product Specification
|
Part NO. |
HS-TL-EB4-50 | HS-TL-EB4-62 | HS-TL-EB4-72 | HS-TL-EB4-80 | HS-TL-EB4-94 |
|
Dimensions(mm) |
φ50*130mm | φ62*160mm | φ72*171mm | φ80*176mm | φ94*180mm |
|
Power(W) |
8W | 15W | 20W | 25W | 35W |
|
Luminous (Im) |
700LM | 1300LM | 1800LM | 2200LM | 3100LM |
|
Lumen Efficiency |
90lm/w | ||||
|
Main Material |
Aluminum + PC Lens |
||||
| CRI |
>80 |
||||
| Power Factor |
>0.9 |
||||
| Input Voltage |
AC200-240V |
||||
| Beam Angle |
15°- 60° Zoomable |
||||
| Working Temperature |
-20—50°С |
||||
Product Parameter
|
P/N |
Dimensions(mm) | Power | Lumen | Beam Angle | CTN Size (MM) | G.W./CTN (PCS) | QTY/CTN
(KG) |
|||
|
Dia |
L | W |
H |
|||||||
|
HS-TL-EB4-50 |
φ50 | 130 | 84 | 100 | 8W | 700 | 15° – 60° Zoomable | 425x260x290 | 21 | 11 |
|
HS-TL-EB4-62 |
φ62 | 160 | 84 | 100 | 15W | 1300 | 15° – 60° Zoomable | 425x290x290 | 18 | 14 |
| HS-TL-EB4-72 | φ72 | 171 | 84 | 100 | 20W | 1800 | 15° – 60° Zoomable | 500x290x290 | 18 |
16.5 |
| HS-TL-EB4-80 | φ80 | 176 | 84 | 100 | 25W | 2200 | 15° – 60° Zoomable | 540x290x285 | 18 |
17.5 |
| HS-TL-EB4-94 | φ94 | 180 | 84 | 100 | 35W | 3100 | 15° – 60° Zoomable | 420x320x330 | 12 |
15 |
Installation Instruction
