Product Feature
- Simply Designed Appearance, Suitable for Different Commercial Lighting
- Direct&Indirect Lighting Solution, Low UGR, Best Option for Aisle Lighting
- Super Easy and Efficient Installation Design with Mounting Plate
- Large Cable Entry Holes on Mounting Plate for Flexible Application
- Perfect Mouting Especially for Uneven Walls in Old Buildings
- High End Anodized 6063 Extruded Aluminum, Top Feeling of Quality
- Top Lumen Efficiency up to 150lm/W, Saving Energy
- DIP Power Switch, DIP CCT Switch
- Options: Emergency Battery Pack, Radar Sensor, Separate Emergency Lighting for EPS

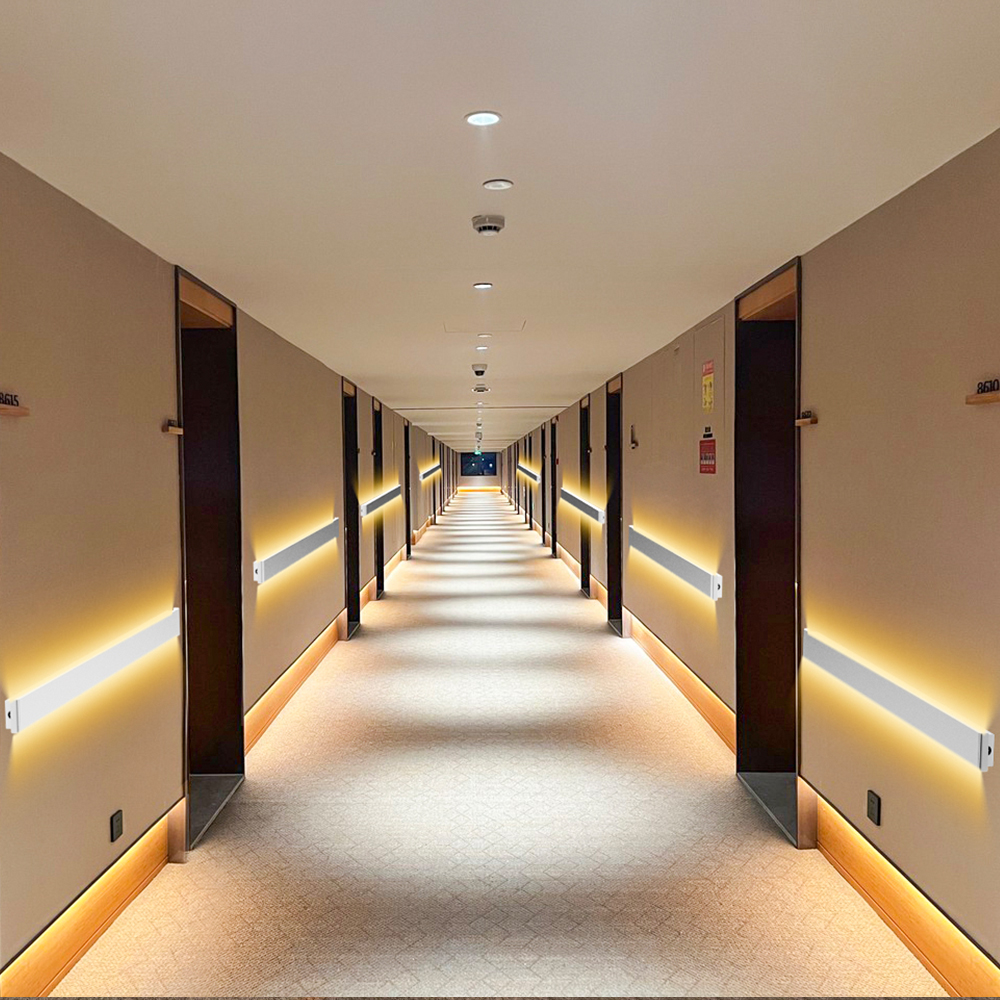

- Customization Support: Colors, Lengths, Powers>> Application: Hotel, School, Office, Shopping Mall, Hospital, etc
- 5 Years Warranty
Product Specification
| Model NO | HS-WL-F30 | HS-WL-F60 | HS-WL-F120 | HS-WL-F150 |
| Dimensions(mm) | 300x90x40 | 600x90x40 | 1200x90x40 | 1500x90x40 |
| Power(W) | 12 | 24 | 40 | 60 |
| Luminous Flux(LM) | 1800 | 3600 | 6000 | 9000 |
| Lumen Efficiency(LM/W) | 150 | |||
| Input Voltage | AC200-240V, 50/60Hz | |||
| Power Factor | >0.9 | |||
| Color Temp. | 2700K/3000K/4000K/5000K/6000K/CCT Changeable | |||
| CRI | ≥80 | |||
| SDCM | SDCM<5 | |||
| Lifespan | L80B10=100,000 Hours @ 25℃ | |||
| UGR | <22 | |||
| Dimming Type | Non Dimmable/Triac/ 0-10V/ DALI/Zigbee 3.0/Blue Tooth | |||
| IP Rating | IP20 | |||
| IK Rating | IK05 | |||
| Main Materials | 6063 Aluminum | |||
| Working Temp | -20~+40℃ | |||
| THD | <15% | |||
| Isulation Class | CLASS I | |||
| Safety Standards | EN IEC60598-2-1 | |||
| EMC | EN 55015, EN IEC 61000-3-2 | |||
| Certificate | CE RoHS | |||
| Warranty | 5 Years | |||

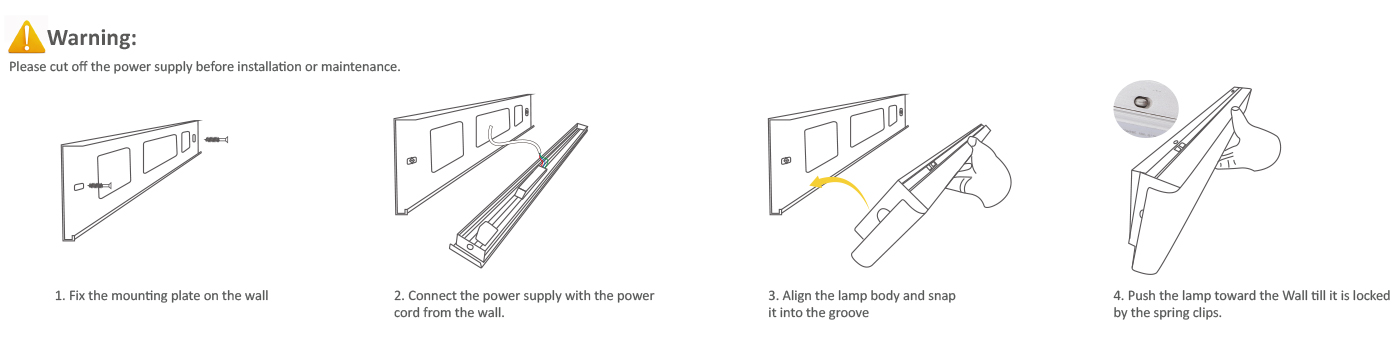

Installation Instruction
