Product Feature
- Elegant Outlook Design, Strong Quality Feeling
- Die-casting Aluminum Housing + Aluminum Reflective Cup
- Suspension and Ceiling Installation Support
- Professional Design of Opti, No Shadow, No Light Spot
- Constant Current LED Driver, Isolating Solution, Safe and Reliable
- Non Dimmable/ Triac/ 0-10V/ DALIcs
Product Specification
|
Model NO. |
HS-DL-F-90-XD(R) | HS-DL-F-110-XD(R) | HS-DL-F-130-XD(R) | HS-DL-F-170-XD(R) | HS-DL-F-193-XD(R) |
|
Dimensions |
φ90*90MM | φ110*120MM | φ130*152MM | φ170*185MM | φ193*193MM |
|
Power |
8W | 15W | 20W | 30W | 40W |
|
Luminous (Im) |
800LM | 1500LM | 2000LM | 3000LM | 4000LM |
|
Color Temperature |
3000K/ 4000K/ 5000K/ 6000K/ CCT Changeable | ||||
| Lumen Efficiency |
100LM/W |
||||
| CRI |
80-85Ra |
||||
| Power Factor |
>0.9 |
||||
| Beam Angle |
20°/ 45° |
||||
| Input Voltage |
AC200-240V, 50/60Hz |
||||
|
Work Temperature |
-20-40℃ | ||||
|
Main Material |
Aluminum | ||||
|
Frame Color |
White/ Black |
||||
| Warranty |
5 Years |
||||
| Certification |
CE, RoHS |
||||
Product Parameter
|
P/N |
Dimensions(mm) | Power | Lumen | Beam Angle | CTN Size (MM) | G.W./CTN (PCS) | QTY/CTN
(KG) |
|
|
Dia |
H |
|||||||
|
HS-DL-F-90-XD(R) |
φ90 | 90 | 8W | 800 | 20 °/45 ° | 500x500x250 | 50 | 25 |
|
HS-DL-F-110-XD(R) |
φ110 | 120 | 15W | 1500 | 20 °/45 ° | 480x480x310 | 32 | 22 |
| HS-DL-F-130-XD(R) | φ130 | 152 | 20W | 2000 | 20 °/45 ° | 430x430x350 | 18 |
17 |
| HS-DL-F-170-XD(R) | φ170 | 185 | 30W | 3000 | 20 °/45 ° | 550x370x410 | 12 |
19 |
| HS-DL-F-193-XD(R) | φ193 | 193 | 40W | 4000 | 20 °/45 ° | 430x430x430 | 8 |
16 |

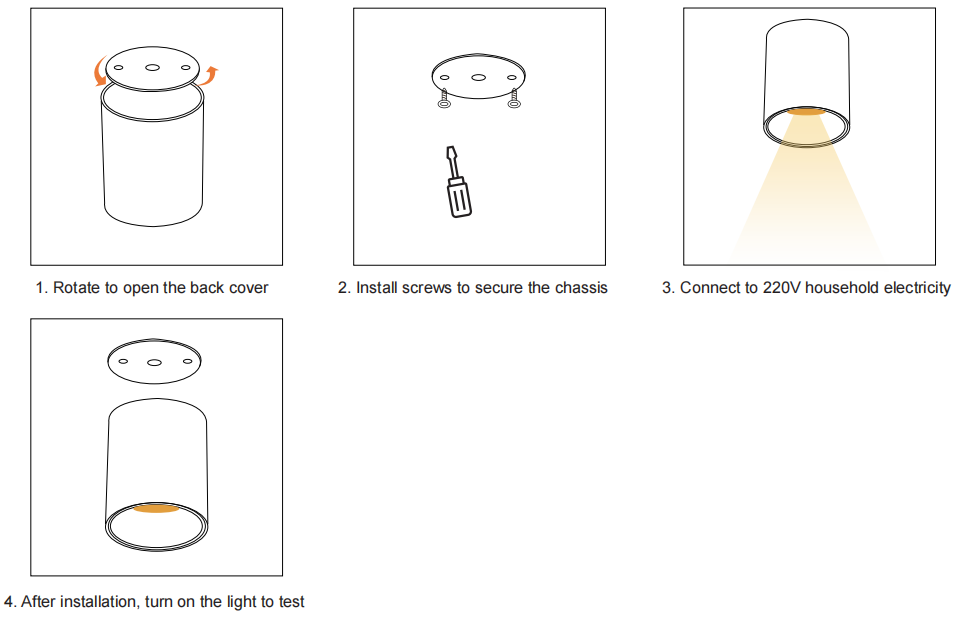

Installation Instruction
