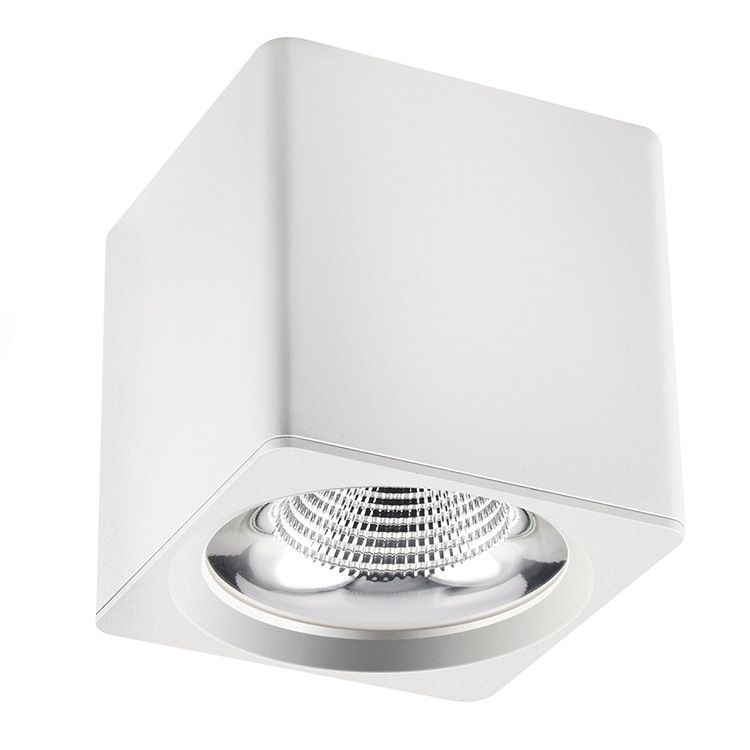

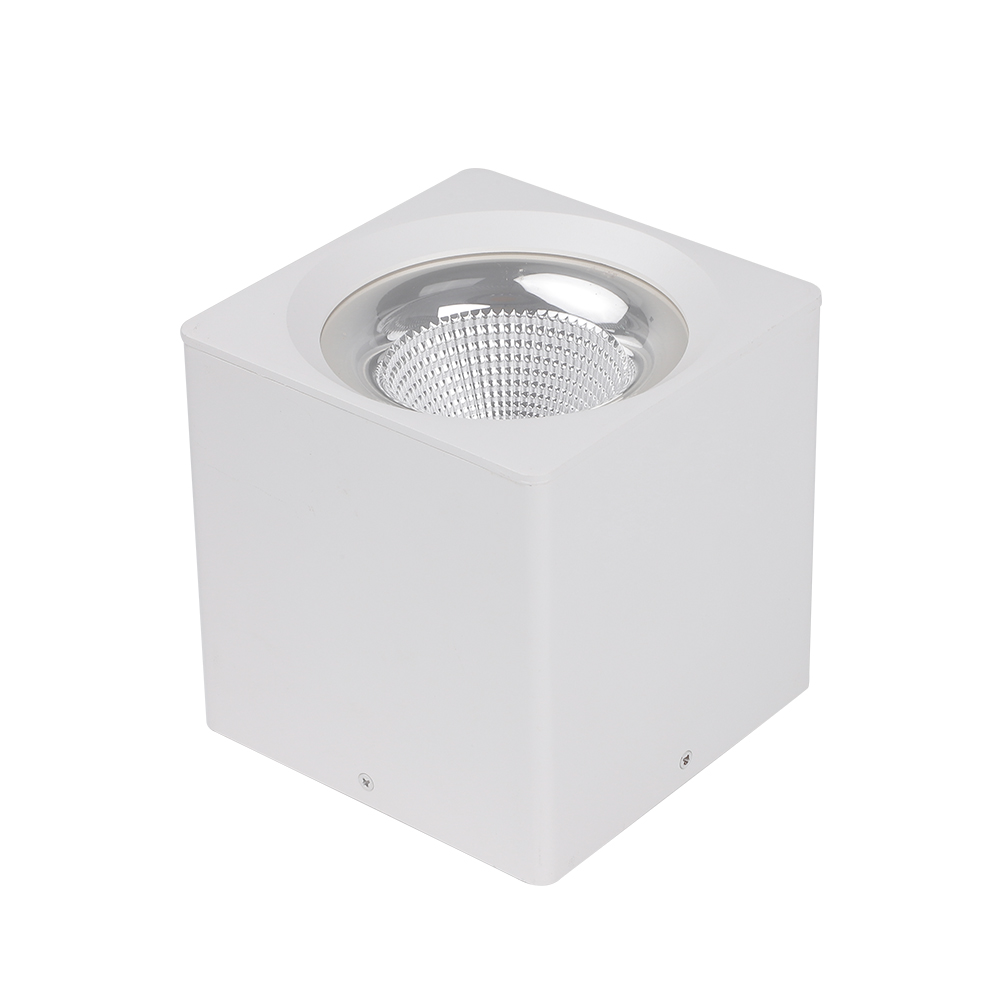

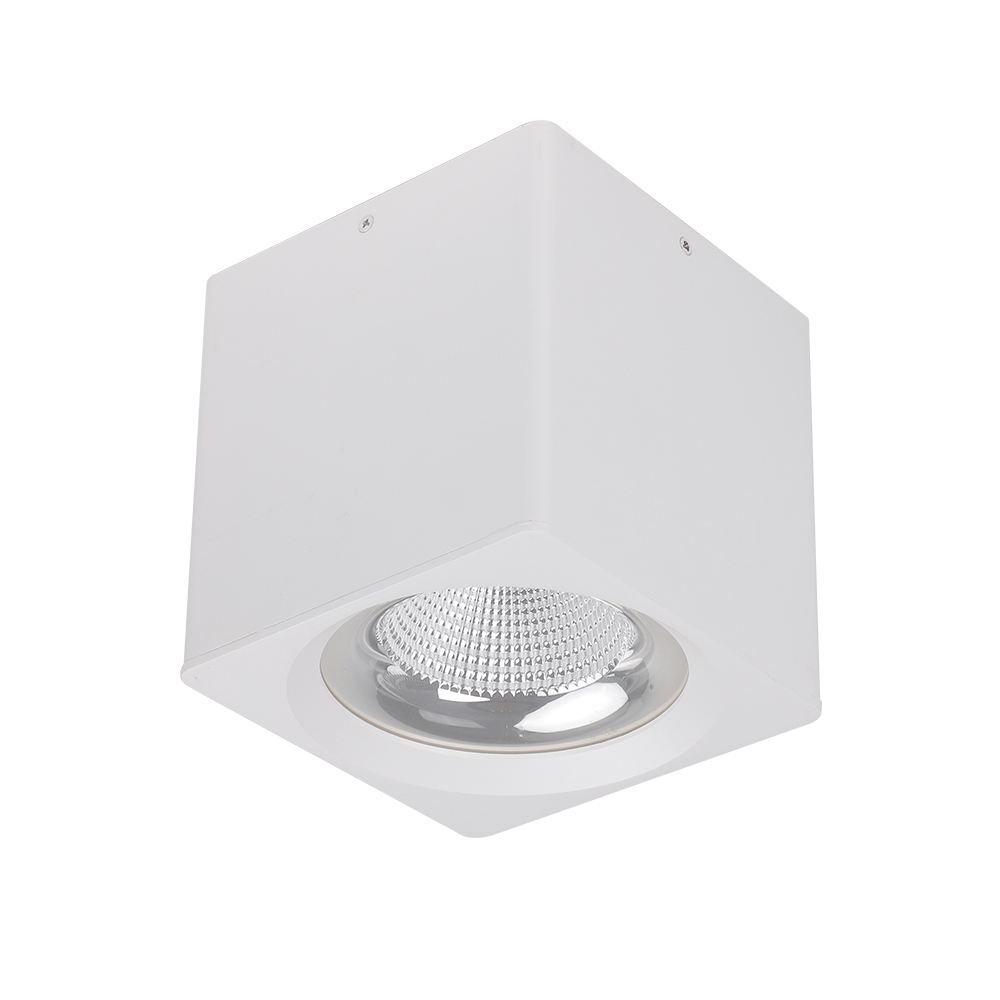

Product Feature
- Elegant Outlook Design, Strong Quality Feeling
- Die-casting Aluminum Housing + Aluminum Reflective Cup
- Suspension and Ceiling Installation Support
- Professional Design of Optics, No Shadow, No Light Spot
- Constant Current LED Driver, Isolating Solution, Safe and Reliable
- Triac/ 0-10V/DALI/ Zigbee Dimmable, Flicker Free
- 5 Years Warranty
Product Specification
| Model NO. | HS-DL-F-90-XD(R) | HS-DL-F-110-XD(R) | HS-DL-F-130-XD(R) | HS-DL-F-170-XD(R) | HS-DL-F-193-XD(R) |
| Dimensions | φ90*90MM | φ110*120MM | φ130*152MM | φ170*185MM | φ193*193MM |
| Power | 8W | 15W | 20W | 30W | 40W |
| Luminous (Im) | 800LM | 1500LM | 2000LM | 3000LM | 4000LM |
| Color Temperature | 3000K/ 4000K/ 5000K/ 6000K/ CCT Changeable | ||||
| Lumen Efficiency | 100LM/W | ||||
| CRI | 80-85Ra | ||||
| Power Factor | >0.9 | ||||
| Beam Angle | 20°/ 45° | ||||
| Input Voltage | AC200-240V, 50/60Hz | ||||
| Work Temperature | -20-40℃ | ||||
| Main Material | Aluminum | ||||
| Frame Color | White/ Black | ||||
| Warranty | 5 Years | ||||
| Certification | CE, RoHS | ||||
Product Parameter
| P/N | Dimensions(mm) | Power | Lumen | Beam Angle | CTN Size (MM) | G.W./CTN (PCS) | QTY/CTN
(KG) |
||
| L | W | H | |||||||
| HS-DL-F-90-XD(S) | 90 | 90 | 90 | 10W | 1000 | 20 °/45 ° | 500x500x250 | 50 | 24 |
| HS-DL-F-110-XD(S) | 110 | 110 | 120 | 18W | 1800 | 20 °/45 ° | 480x480x310 | 32 | 19 |
| HS-DL-F-130-XD(S) | 130 | 130 | 135 | 30W | 3000 | 20 °/45 ° | 430x430x300 | 18 | 18 |
| HS-DL-F-160-XD(S) | 160 | 160 | 165 | 40W | 4000 | 20 °/45 ° | 520x350x360 | 12 | 21 |

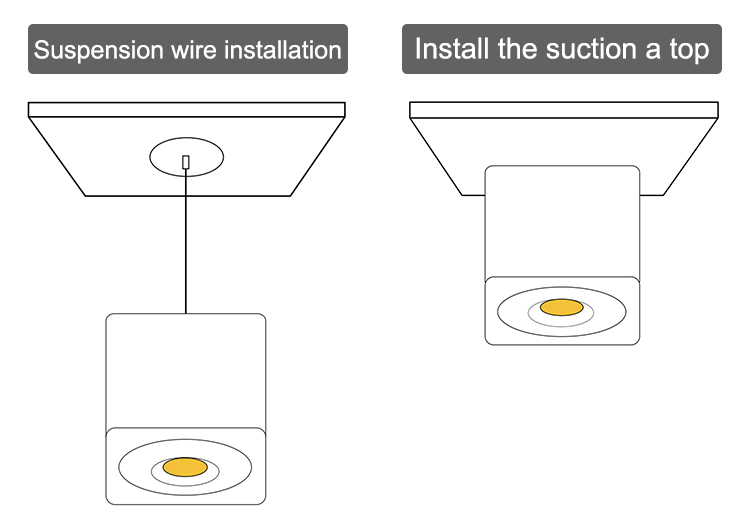

Installation Instruction
