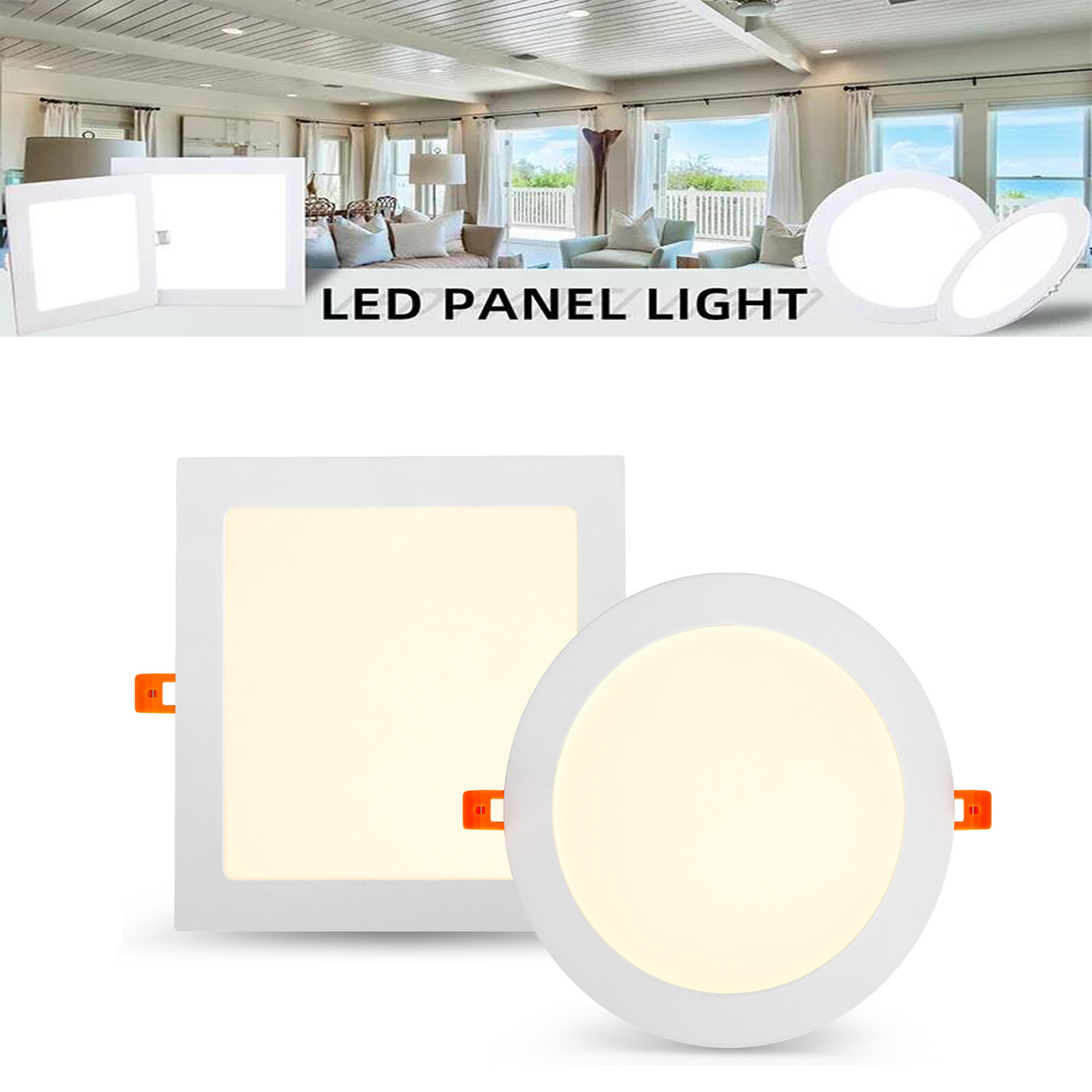

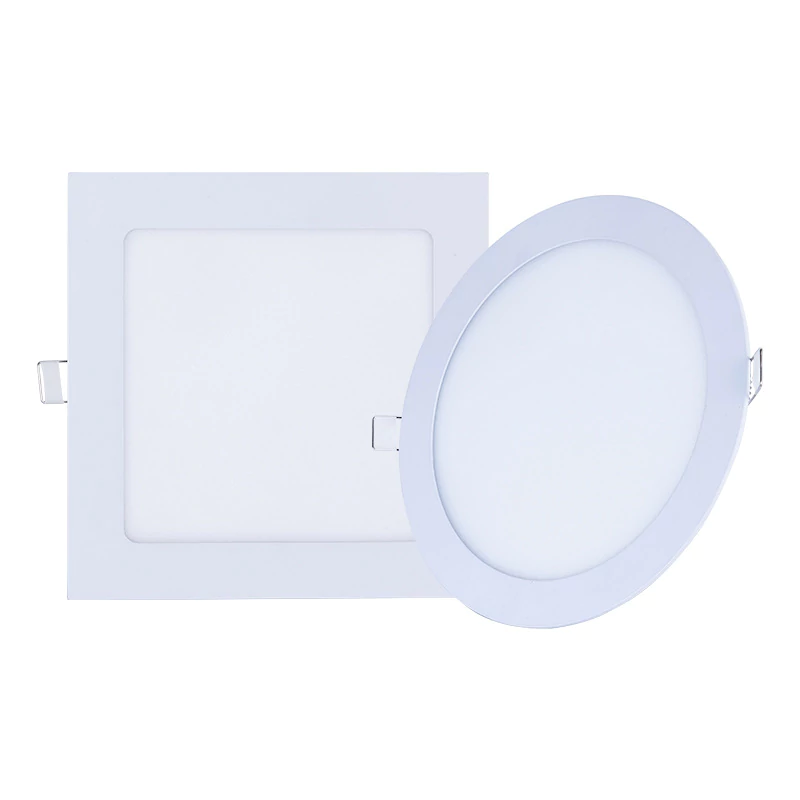

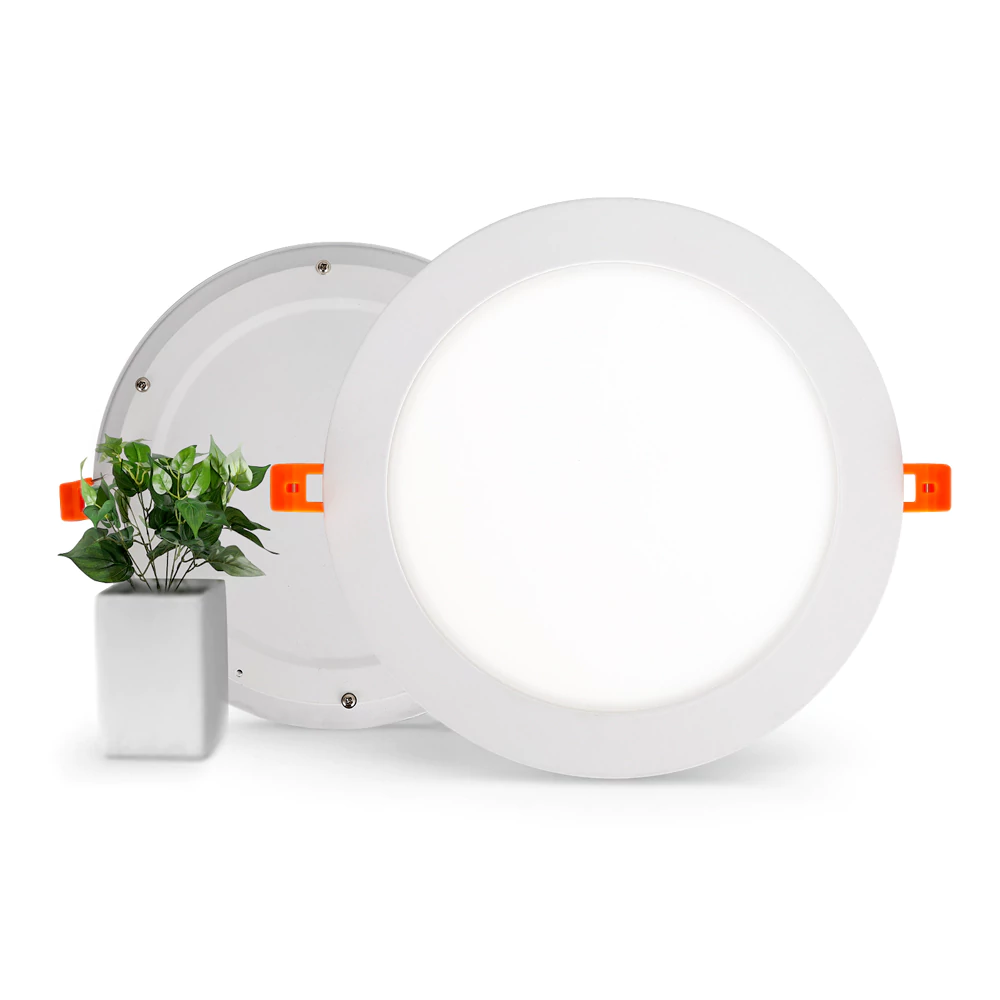

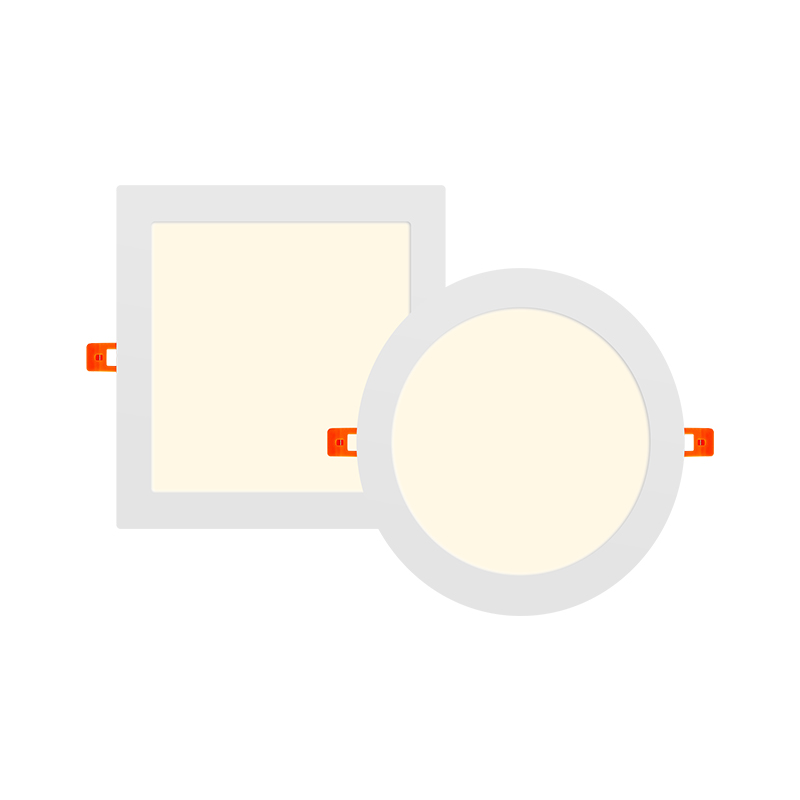

Recessed Round & Square LED Panel Light

Our products adopt high-quality LED light chips to ensure the uniform distribution of light, avoid glare caused by direct irradiation, and provide a soft and comfortable lighting environment. With its unique installation method, the lamp forms a coherent surface with the surrounding, which not only improves the overall beauty of the space, but also reduces the accumulation of dust. It is an ideal choice for modern lighting with its hidden installation and efficient lighting.

Recessed Round & Square LED Panel Light

Our products adopt high-quality LED light chips to ensure the uniform distribution of light, avoid glare caused by direct irradiation, and provide a soft and comfortable lighting environment. With its unique installation method, the lamp forms a coherent surface with the surrounding, which not only improves the overall beauty of the space, but also reduces the accumulation of dust. It is an ideal choice for modern lighting with its hidden installation and efficient lighting.

Product Feature

  • Ultra Slim Lamp Body(13mm)
  • PMMA Light Guide Plate, No Yellowing
  • Uniform Light Output, No Darkness Area
  • Top Brand Constant Current LED Driver
  • Ultra High Lumen Efficiency up to 100lm/W
  • Triac/ 0-10V/ DALI/ Wireless/ Zigbee Available

Product Specification

Part NO.

HS-PL-RM-R120

HS-PL-RM-S120

HS-PL-RM-R180

HS-PL-RM-S180

HS-PL-RM-R240

HS-PL-RM-S240

HS-PL-RM-R300

HS-PL-RM-S300

Power

6W 12W 18W 24W

CCT

3000K~6000K, Dual Colors
LED Type

SMD2835

CRI

>80

Beam Angle

120°

Product Parameter

Part NO.

HS-PL-RM-R120

HS-PL-RM-S120

HS-PL-RM-R180

HS-PL-RM-S180

HS-PL-RM-R240

HS-PL-RM-S240

HS-PL-RM-R300

HS-PL-RM-S300

Dimensions(mm)

φ120*H13 mm

120*120*13mm

φ170*H13 mm

174*174*13

φ225*H13 mm

225*225*13

φ300*H13 mm

300*300*13

Power

6W 12W 18W 24W

Luminous (Im)

450-500 900-1000 1600-1800 2200-2400

CCT

3000K 4000K 5000K 6000K CCT Changeable
Lumen Efficiency

80-100lm/W

CRI

80-85Ra

Power Factor

>0.9

Input Voltage

AC200-240V, 50/60Hz

Working Temperature

-20 — 40℃

Main Material

6063 Aluminum Frame + PMMA + PS Diffuser
Frame Color

White

Warranty

5 Years

Certification

CE, RoHS

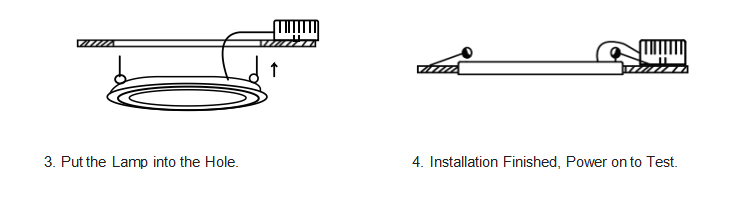

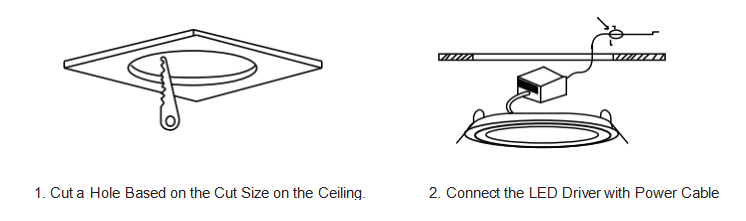

Installation Instruction
