Product Feature
- Cylindrical & Simple Appearance, Easy to Clean
- Top Quality 94V0 Fireproof PC Housing
- High Light Transmittance PC Cover, Milky & Semi-Clear & Transparent Options
- Stainless Steel End Caps, Elegant Outlook
- IP65, IK10, Waterproof, Dustproof, Anti-corrosion
- Playand Plug Design, Quick Installation, Easy to Power & Link
- Triac, 0-10V,DALI Dimmable & Non Dimmable, Flicker-Free Available
- Option: Zigbee, Emergency, Motion Sensor
- for Warehouse, Food Factory, Animal Plant
Product Specification
|
Model NO. |
HS-TPL- E60 | HS-TPL- E120 | HS-TPL- E150 |
|
Actual Size |
φ81*600MM | φ81*1200MM | φ81*1500MM |
|
Power |
18W | 35W | 45W |
|
Luminous (Im) |
2300LM | 4500LM | 5800LM |
|
Color Temp |
3000-6500K | ||
|
Lumen Efficiency |
130LM/W |
||
| CRI |
80-85Ra |
||
| Power Factor |
>0.9 |
||
| Input Voltage |
AC200-240V, 50/60Hz |
||
| IP Rate |
IP65 |
||
| Work Temp |
-20-50℃ |
||
|
Main Material |
Top Quality 94V0 Fireproof PC Housing+6063 Aluminum Board | ||
|
Frame Color |
White | ||
| Warranty |
5 Years |
||
| Certification |
CE, RoHS |
||
Product Parameter
| Model NO. | Length | Power | Luminous(LM) | Lumen Efficiency | Size(mm) | Carton Size(mm) | QTY/CTN(PCS) | G.W./CTN(KG) |
|
HS-TPL- E60 |
2 | 18W | 2340 | 130LM/W | φ76*600 | 680x270x260 | 12 | 11kg |
| HS-TPL- E120 | 4 | 35W | 4550 | 130LM/W | φ76*1200 | 1280x270x260 | 12 |
21kg |
| HS-TPL- E150 | 5 | 45W | 5850 | 130LM/W | φ76*1500 | 1580x270x260 | 12 |
26kg |

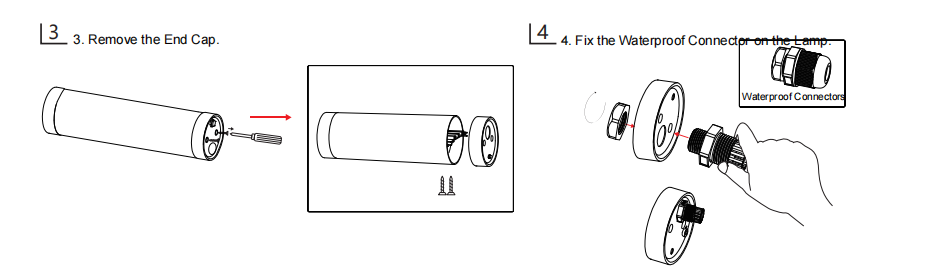

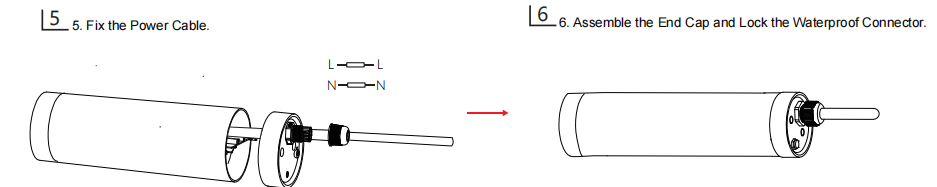

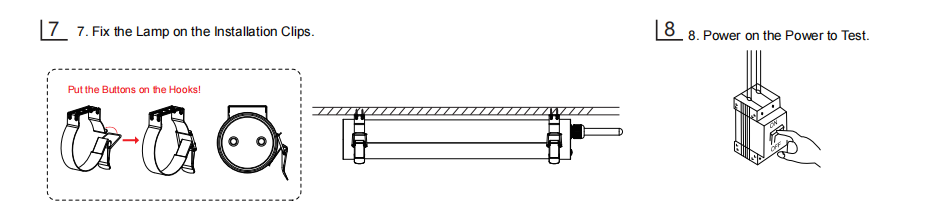

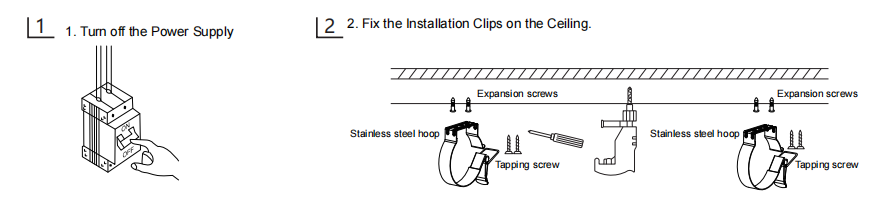

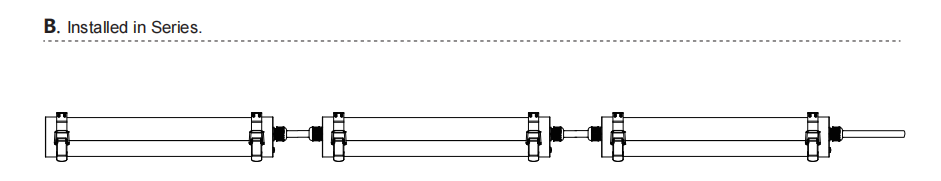

Installation Instruction
