Product Feature
- 6063 Aluminum Housing, IK10 Rated, Super High Toughness, Strength & Elasticity
- High Light Transimittance PC Cover, Milky & Semi-Clear & Transparent Options
- IP65 Waterproof Protection Rating, Dustproof & Anti-corrosion
- Play and Plug Design, Quick Installation, Easy to Power & Link
- Ultra High Efficiency Design, 150lm/W for Finished Lamp, 200lm/W for LED
- Double Heat Dissipation: Extruded 6063 Aluminum Board + Entired Wide Aluminum PCB
- Top Quality LED Drivers, Efficiency > 88%, PF > 0.9, THD < 15%, Lifespan > 50,000H
- Play and Plug LED Driver Design, Easy Maintenance & Quick Replacement
- Triac, 0-10V, DALI Dimmable & Non Dimmable, Flicker-Free Available
- Working Temperature: -20°C to 50°C
- Certificate : CE, RoHS
- 5 Years Warranty
Product Specification
|
Model NO. |
HS-TPL- A60 | HS-TPL- A120 | HS-TPL-A150 |
|
Actual Size |
600*83*68MM | 1200*83*68MM | 1500*83*68MM |
|
Power |
20W | 40W | 60W |
|
Luminous (Im) |
3000LM | 6000LM | 9000LM |
|
Color Temp |
3000K/ 4000K/ 5000K/ 6000K/ CCT Switchable | ||
| Lumen Efficiency |
150LM/W |
||
| CRI |
80-85Ra |
||
| Power Factor |
>0.9 |
||
| Input Voltage |
AC200-240V, 50/60Hz |
||
| IP Rate |
IP65 |
||
|
Working Temperature |
-20-50℃ | ||
|
Main Material |
Aluminum Housing+PC Cover | ||
| Frame Color |
Silver |
||
| Warranty |
5 Years |
||
| Certification |
CE, RoHS |
||
Product Parameter
|
Model NO. |
Length | Power | Luminous(LM) | Lumen Efficiency | Carton Size(mm) | QTY/CTN(PCS) | G.W./CTN(KG) |
|
HS-TPL- A60 |
2 | 20W | 3000 | 150LM/W | 680x290x250 | 9 | 10.5kg |
| HS-TPL- A120 | 4 | 40W | 6000 | 150LM/W | 1280x290x250 | 9 |
18.5kg |
| HS-TPL- A150 | 5 | 60W | 9000 | 150LM/W | 1580x290x250 | 9 |
23kg |

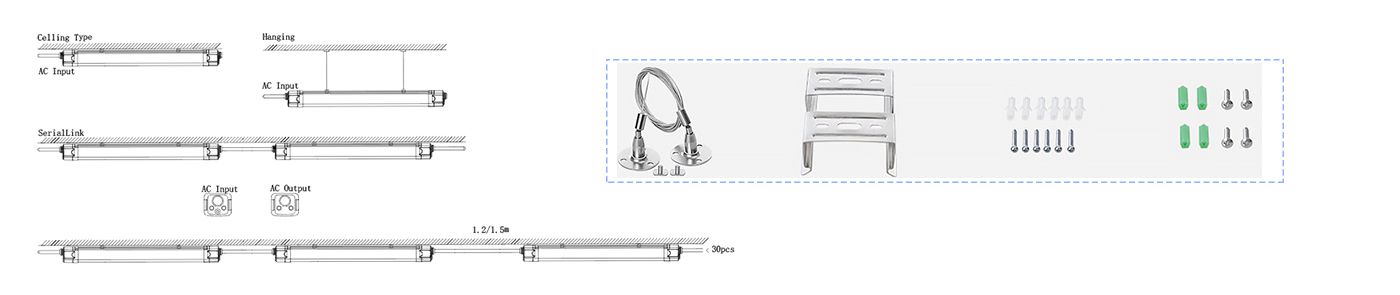

Installation Instruction
