Product Feature
- Top Quality 94V0 Fireproof PC Housing +6063 Aluminum Board, PC cover
- High Light Transmittance PC Cover, Milky & Semi-Clear & Transparent Options
- IP65, Waterproof, Dustproof, Anti-corrosion
- Playand Plug Design, Quick Installation, Easy to Power & Link
- Ultra High Efficiency Design, 150lm/W for Finished Lamp, 200lm/Wfor LED
- Triac, 0-10V, DALI Dimmable & Non Dimmable, Flicker-Free Available
- Option: Zigbee, Emergency, Motion Sensor
Product Specification
| Model NO. | HS-TPL- G60 | HS-TPL- G120 | HS-TPL-G150 |
|
Actual Size |
600*74*61MM | 1200*74*61MM | 1500*74*61MM |
|
Power |
18W | 30W | 45W |
|
Luminous(lm) |
2700LM | 4500LM | 6700LM |
| Color Temperature |
2700-6500K |
||
| Lumen Efficiency |
150LM/W |
||
| CRI |
80-85Ra |
||
| PF |
>0.9 |
||
|
Input Voltage |
AC200-240V, 50/60Hz | ||
|
IP Rate |
IP65 | ||
|
Work Temperature |
-20-50℃ | ||
|
Main Material |
Top Quality 94V0 Fireproof PC Housing +6063 Aluminum Board | ||
| Frame Color |
White |
||
| Warranty |
5 Years |
||
| Certification |
CE, RoHS |
||
|
Remarks : HS-TPL-G60-CCT HS-TPL-G120-CCT HS-TPL-G150-CCT HS-TPL-G60-MS HS-TPL-G120-MS HS-TPL-G150-MS HS-TPL-G60-EM HS-TPL-G120-EM HS-TPL-G150-EMHS-TPL-G60-MSEM HS-TPL-G120-MSEM HS-TPL-G 150-MSEM |
CCT: Zigbee CCT Changeable
MS: Motion Sensor EM: Emergency Module MSEM: Motion Sensor+Emergenc |
||
Product Parameter
| Model NO. | Length | Power | Lumen(LM) | Lumen Efficiency | Carton Size(mm) | QTY/CTN(PCS) | G.W./CTN(KG) |
|
HS-TPL- G60 |
2 | 18W | 2700 | 150LM/W | 680x280x260 | 12 | 13.2kg |
| HS-TPL- G120 | 4 | 30W | 4500 | 150LM/W | 1280x280x260 | 12 |
22.2kg |
| HS-TPL- G150 | 5 | 45W | 6700 | 150LM/W | 1580x280x260 | 12 |
27.6kg |

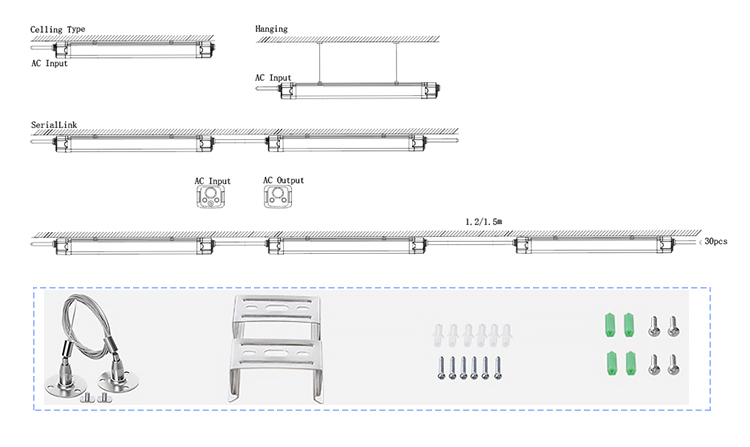

Installation Instruction
