Product Feature
- Top Quality 94V0 Fireproof PC Housing, IK10
- Rated, Super High Toughness, Strength & Elasticity
- High Light Transmittance PC Cover, Milky & Semi-Clear & Transparent Options
- IP65, Waterproof, Dustproof, Anti-corrosion
- Playand Plug Design, Quick Installation, Easy to Power & Link.
- Ultra High Efficiency Design, 120lm/W for Finished Lamp, 200lm/Wfor LED
- Smaller Size, Lower Cost
- OEM Supported with Clients’ Label
Product Specification
|
Model NO. |
HS-TPL- C60 | HS-TPL- C120 | HS-TPL-C150 |
|
Dimensions |
600*51*53MM | 1200*51*53MM | 1500*51*53MM |
|
Power |
15W | 30W | 40W |
|
Luminous (Im) |
1800LM | 3600LM | 4800LM |
|
Color Temperature |
3000K-6500K | ||
| Lumen Efficiency |
120LM/W |
||
| CRI |
80-85Ra |
||
| Power Factor |
>0.9 |
||
| Input Voltage |
AC200-240V, 50/60Hz |
||
| Output Voltage |
DC60-80V |
||
|
Work Temperature |
-20-50℃ | ||
|
Main Material |
Top Quality 94V0 Fireproof PC Housing+6063 Aluminum Board | ||
|
Frame Color |
White |
||
| Warranty |
5 Years |
||
| Certification |
CE, RoHS |
||
Product Parameter
| Model NO. | Length | Power | Luminous(LM) | Lumen Efficiency | Carton Size(mm) | QTY/CTN(PCS) | G.W./CTN(KG) |
|
HS-TPL- C60 |
2 | 15W | 1800 | 120LM/W | 670x250x250 | 16 | 6.4kg |
| HS-TPL- C120 | 4 | 30W | 3600 | 120LM/W | 1260x250x250 | 16 |
11.5kg |
| HS-TPL- C150 | 5 | 40W | 4800 | 120LM/W | 1560x250x250 | 16 |
16kg |

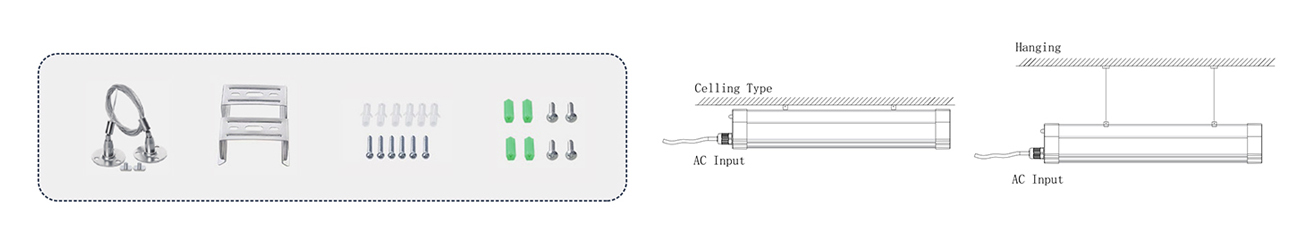

Installation Instruction
