Product Feature
- Ultra-slim Design, for Industrial and Commercial Lighting
- Single CCT/ CCT Changeable(2700K-6500K)
- Triac Dimming, 0-10V Dimming, DALI Dimming, Smart Wireless Control(Zigbee 3.0 Tuya App)

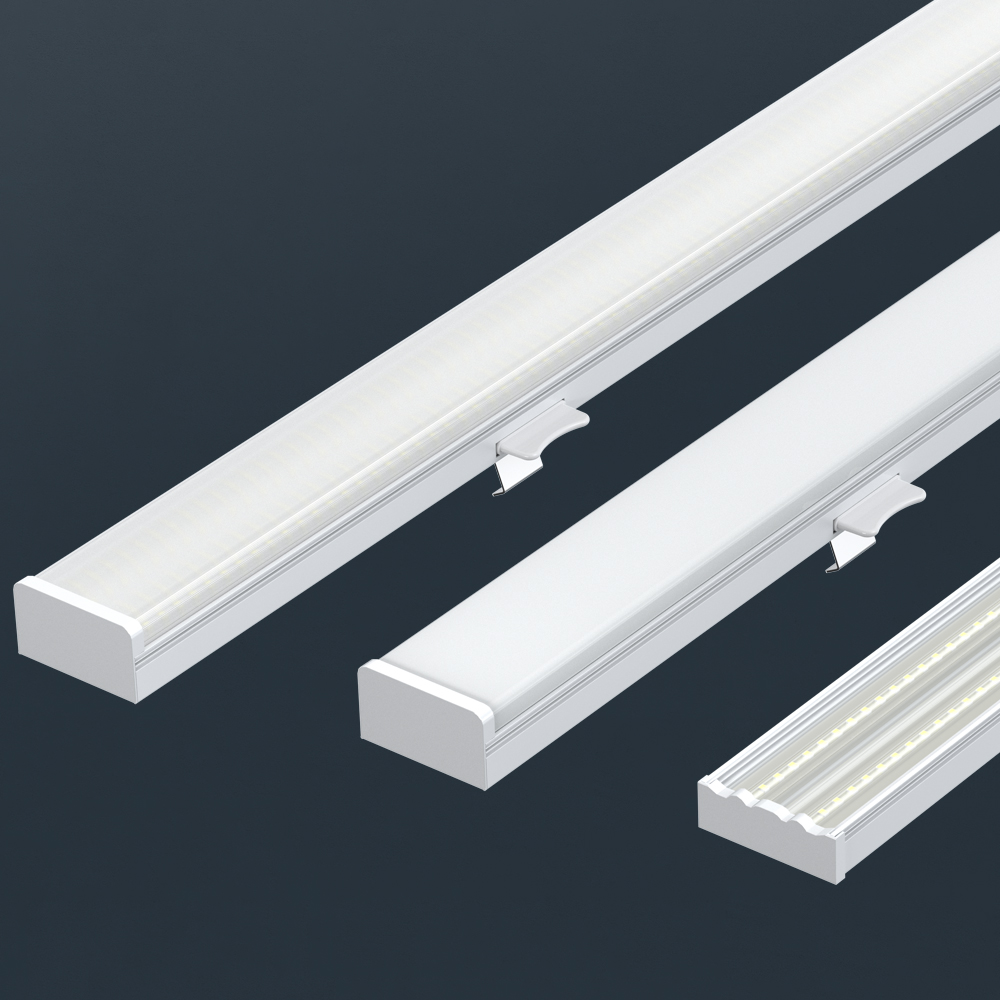

- Different Reflector Colors: White, Black and Transparent
- 5 Years Warranty
Product Specification
| Model NO | HS-LLL-E120 | HS-LLL-E150 | HS-LLL-E120 | HS-LLL-E150 |
| Dimensions（mm） | 1200x66x23 | 1450x66x23 | 1200x66x37 | 1450x66x37 |
| Power | 45W | 70W | 45W | 70W |
| Lumen Eff.: | 200lm/W | Transparent PC Cover: 160LM/W Milky PC Cover: 180LM/W | ||
| Color Temperature | 3000K/ 4000K/ 5000K/ 6000K/ CCT Changeable | |||
| Dimming Type | Triac Dimming, 0-10V Dimming, DALI Dimming, Smart Wireless Control(Zigbee 3.0 Tuya App) | |||
| Power Factor | >0.9 | |||
| CRI | >80 | |||
| IP Rating | 20 | |||
| SDCM | <5 | |||
| Beam Angle | 100° | |||
| Input Voltage | AC220-240V, 50/60Hz | |||
| Working Temp | -20℃-40℃ | |||
| LED Type | SMD2835 | |||
| THD | <15% | |||
| Insulation Class | Class I | |||
| Safety Standards | EN ICE 60598-2-1 | |||
| EMC | EN55015, EN IEC 61000-3-2 | |||
| Warranty | 5 Years | |||

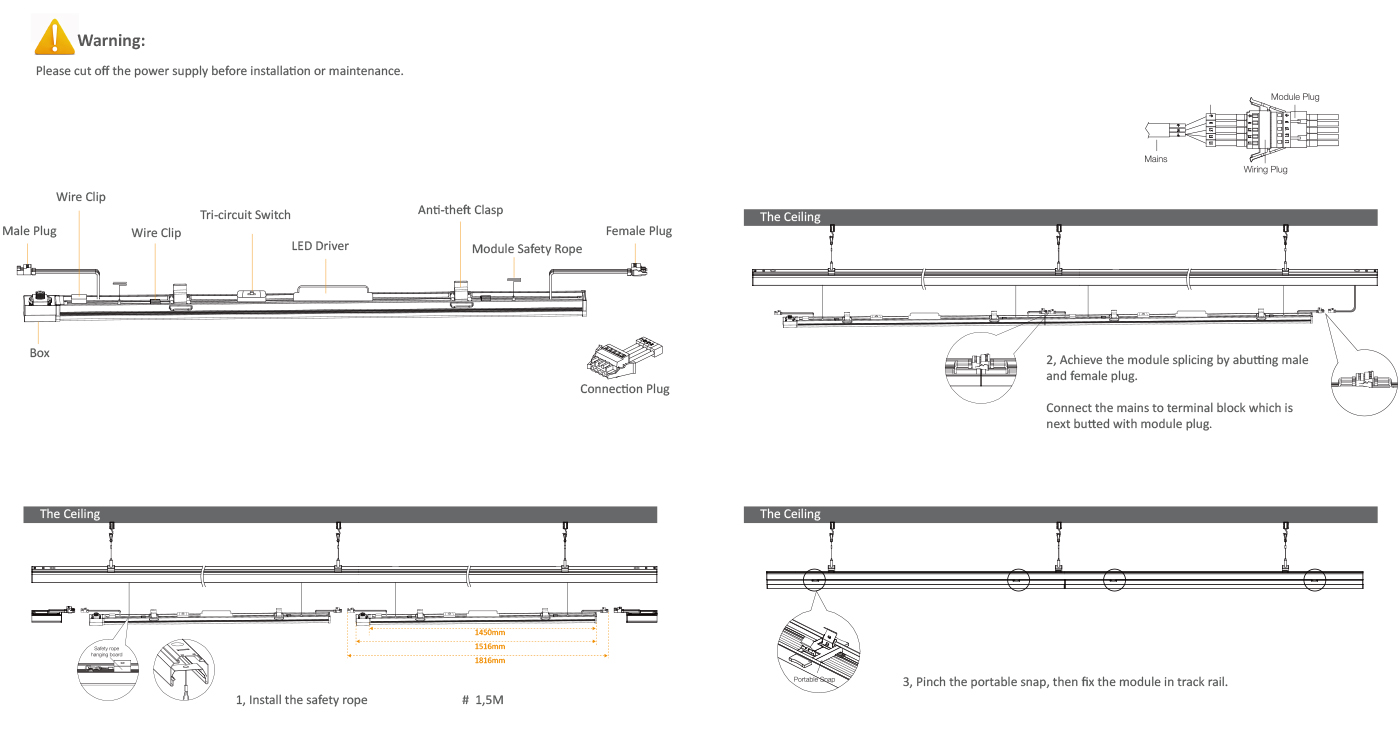

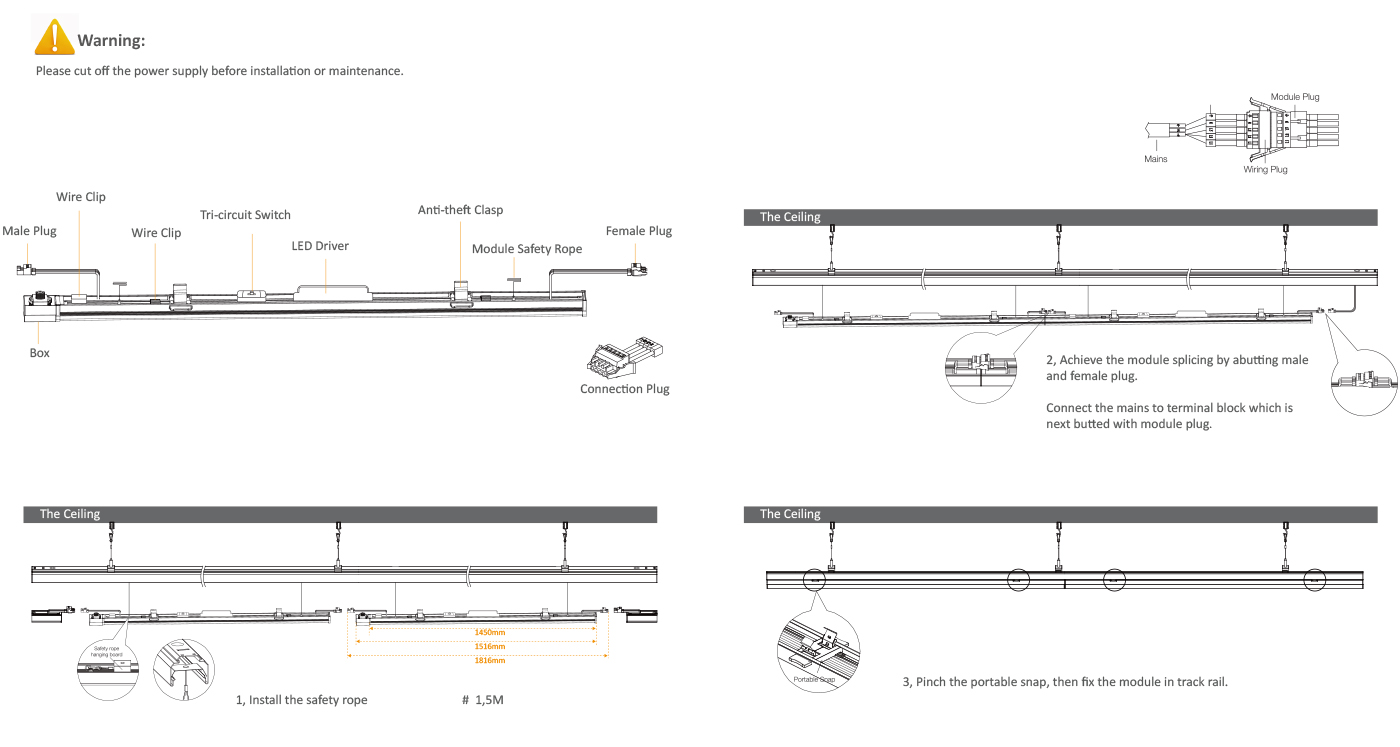

Installation Instruction
