Product Feature
- SpeciaI design with reflector and lens for low UGR, for commercial spaces
- Up(25%) & Down(75%) Lighting solution, for Better Lighting Effect with Lower UGR

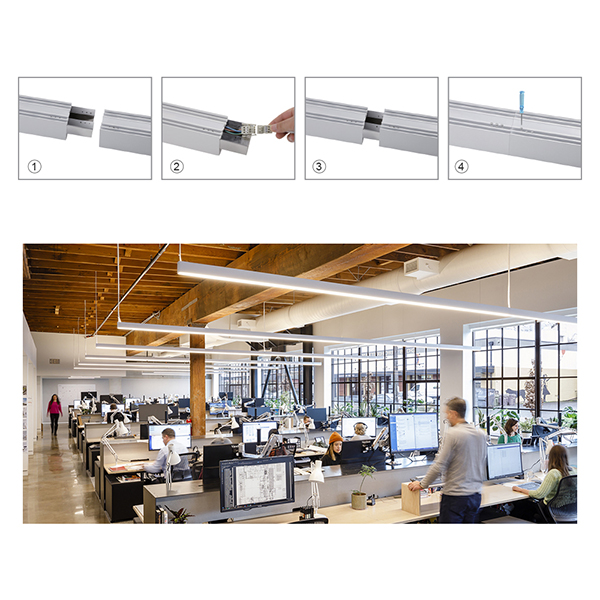

- Metal Block for Quick and seamless Linking

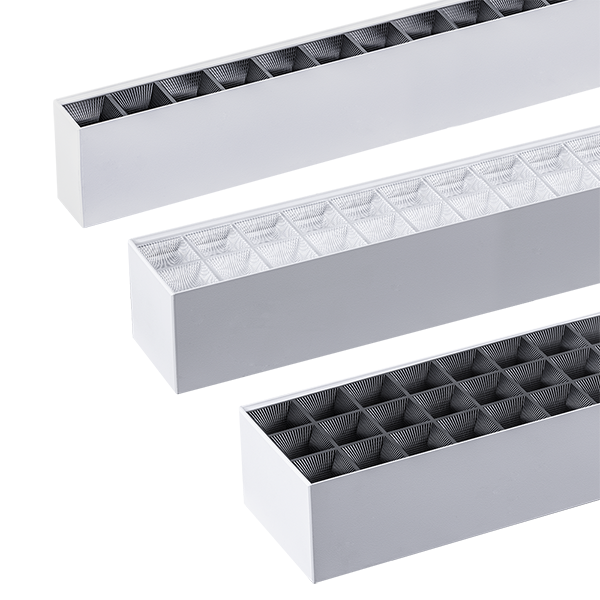

- Three reflector colors are available: white, black, and clear
- single CCT/ Dual CCT/ Available
- Triac Dimming, 0-10v Dimming, DALI Dimming, Smart Wireless Control(Zigbee 3.0 Tuya App)
- 5 Years Warranty
Product Parameter
|
Model NO |
Dimensions | Power | Lumen Efficiency |
|
HS-LLL-C60 (1) |
545x35x65 | 15W | White/ Clear Reflector: 120lm/W
Black Reflector: 90lm/W |
| HS-LLL-C120 (1) | 545x35x65 |
30W |
|
|
HS-LLL-C150 (1) |
1445x35x65 | 48W | |
|
HS-LLL-C60 (2) |
545x65x65 | 20W | White/ Clear Reflector: 130lm/W
Black Reflector: 100lm/W |
|
HS-LLL-C120 (2) |
1175x65x65 |
36W |
|
| HS-LLL-C150 (2) | 1445x65x65 |
60W |
|
| HS-LLL-C60 (3) | 545x95x65 | 30W |
White/ Clear Reflector: 140lm/W Black Reflector: 115lm/W |
|
HS-LLL-C120 (3) |
1175x95x65 |
50W |
|
| HS-LLL-C150 (3) | 1445x95x65 |
70W |
Product Parameter
|
Color Temperature |
3000K/ 4000K/ 5000K/ 6000K/ CCT Changeable |
|
Dimming Type |
Triac Dimming, 0-10V Dimming, DALI Dimming, Smart Wireless Control(Zigbee 3.0 Tuya App) |
|
Power Factor |
0.9 |
|
CRI |
>80 |
| UGR |
<16 |
| IP Rating |
20 |
| SDCM |
<5 |
| Beam Angle |
60°/ 80° |
|
Input Voltage |
AC220-240V, 50-60Hz |
|
Working Temp |
-20℃~+40℃ |
|
LED Type |
SMD2835 |
|
THD |
<15% |
| Insulation Class |
Class I |
| Safety Standards |
EN ICE 60598-2-1 |
| EMC |
EN55015, EN IEC 61000-3-2 |
| Warranty |
5 Years |

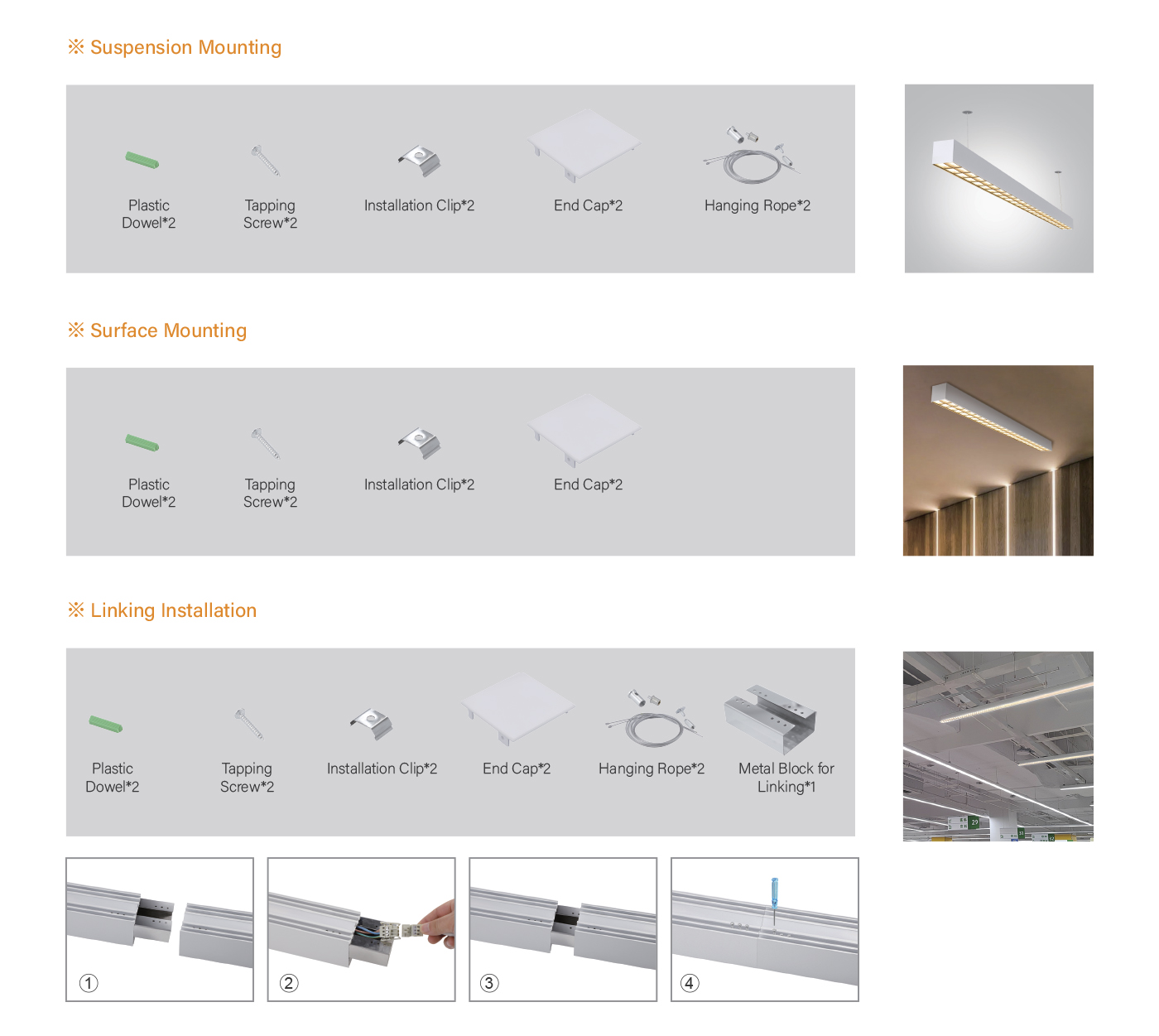

Installation Instruction
